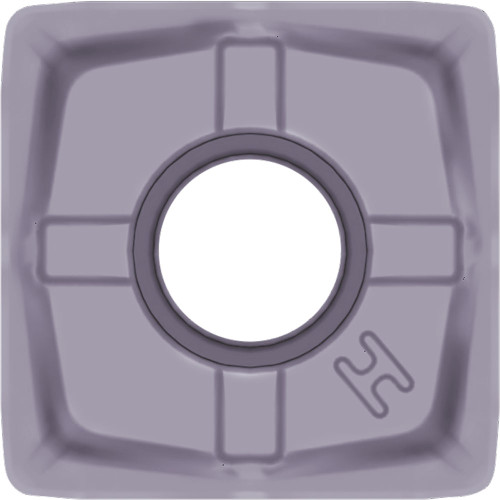

Kyocera SNMU 130508ENGH PR1835 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLU00112
$32.79
Kyocera SNMU 130508ENGH PR1835 Grade PVD Carbide, 90 Degree Square, Negative Rake Angle, Neutral Milling Insert for Roughing in (M) Austenitic Stainless Steel, (M) Precipitation Hardened Stainless Steel, (S) Titanium Alloy and (P) Carbon/Alloy Steel, (P) Mold Steel, (M) Martensitic Stainless Steel

Specifications

Series
MFSN
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Austenitic Stainless Steel|(M) Precipitation Hardened Stainless Steel|(S) Titanium Alloy
Corner Radius
0.80 mm
Corner Radius (Fractional)
1/32
Grade
PR1835
Inscribed Circle (Metric)
13
Thickness
5.51 mm
Style
SNMU
Application
Facing
Thickness (Decimal)
0.22
Shape
90 Degree Square
Insert Holding Method
Screw
ANSI Part Number
SNMU130508ENGHPR1835
ISO Part Number
SNMU130508EN-GH
Rake
Negative
Number of Cutting Edges
8
Insert Size
130508
Chipbreaker
EN-GH
Cutting Range
Roughing
Insert Included Angle (Degree)
90 degrees
Inscribed Circle (Decimal)
0.51
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
