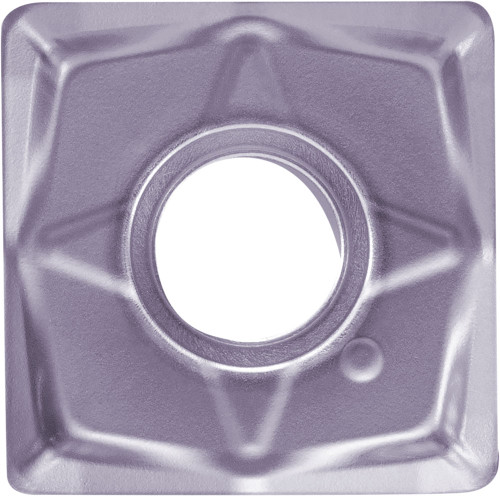

Kyocera SNMU 130508ENGM PR1810 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLS00101
$32.79
Kyocera SNMU 130508ENGM PR1810 Grade PVD Carbide, 90 Degree Square, Negative Rake Angle, Neutral Milling Insert for Roughing in (K) Gray Cast Iron, (K) Nodular Cast Iron

Specifications

Series
MFSN
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(K) Gray Cast Iron|(K) Nodular Cast Iron
Corner Radius
0.80 mm
Corner Radius (Fractional)
1/32
Grade
PR1810
Inscribed Circle (Metric)
13
Thickness
5.51 mm
Style
SNMU
Application
Facing
Thickness (Decimal)
0.22
Shape
90 Degree Square
Insert Holding Method
Screw
ANSI Part Number
SNMU130508ENGMPR1810
ISO Part Number
SNMU130508EN-GM
Rake
Negative
Number of Cutting Edges
8
Insert Size
130508
Chipbreaker
EN-GM
Cutting Range
Roughing
Insert Included Angle (Degree)
90 degrees
Inscribed Circle (Decimal)
0.51
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
