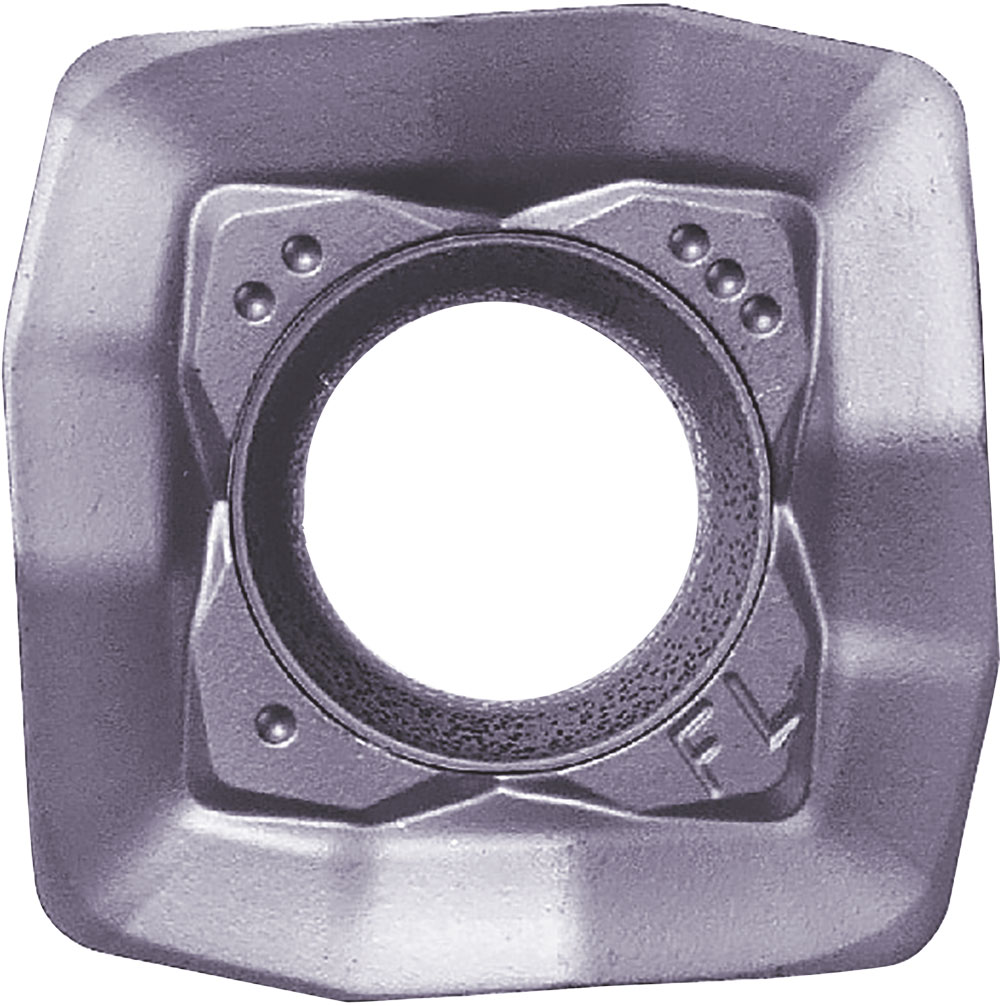

Kyocera SOMT 100420ERFL PR1825 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLT00100
$25.58
Kyocera SOMT 100420ERFL PR1825 Grade PVD Carbide, 90 Degree Square, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (P) Carbon/Alloy Steel, (P) Mold Steel and (M) Austenitic Stainless Steel

Specifications

Series
MFHR
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel|(P) Mold Steel
Corner Radius
2 mm
Corner Radius (Fractional)
5/64
Grade
PR1825
Inscribed Circle (Metric)
10.45
Thickness
4.58 mm
Style
SOMT
Application
Facing, Helical Milling, High Feed, Plunging, Pocketing, Ramping, Shouldering, Slotting
Thickness (Decimal)
0.18
Shape
90 Degree Square
Insert Holding Method
Screw
ANSI Part Number
SOMT100420ERFLPR1825
ISO Part Number
SOMT100420ER-FL
Rake
Positive
Number of Cutting Edges
4
Insert Size
100420
Chipbreaker
ER-FL
Cutting Range
Roughing
Insert Included Angle (Degree)
90 degrees
Inscribed Circle (Decimal)
0.41
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFH-Raptor_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
