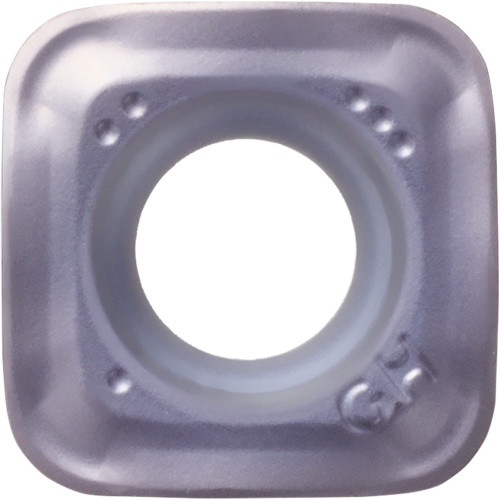

Kyocera SOMT 140520ERGH PR1535 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC40027
$31.16
Kyocera SOMT 140520ERGH PR1535 Grade PVD Carbide, Square, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (M) Precipitation Hardened Stainless Steel and (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, (P) Mold Steel, (M) Martensitic Stainless Steel, (S) Heat-Resistant Alloy

Specifications

Series
MFHR
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Precipitation Hardened Stainless Steel
Corner Radius
2 mm
Corner Radius (Fractional)
5/64
Grade
PR1535
Inscribed Circle (Metric)
14.17
Thickness
5.56 mm
Style
SOMT
Application
Facing, Helical Milling, High Feed, Plunging, Pocketing, Ramping, Shouldering, Slotting
Thickness (Fractional)
7/32
Shape
90 Degree Square
Insert Holding Method
Screw
Old Material Number
8864971
ANSI Part Number
SOMT140520ERGHPR1535
ISO Part Number
SOMT140520ER-GH
Rake
Positive
Number of Cutting Edges
4
Insert Size
140520
Chipbreaker
ER-GH
Cutting Range
Roughing
Insert Included Angle (Degree)
90 degrees
Inscribed Circle (Decimal)
0.56
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFH-Raptor_W.pdf
