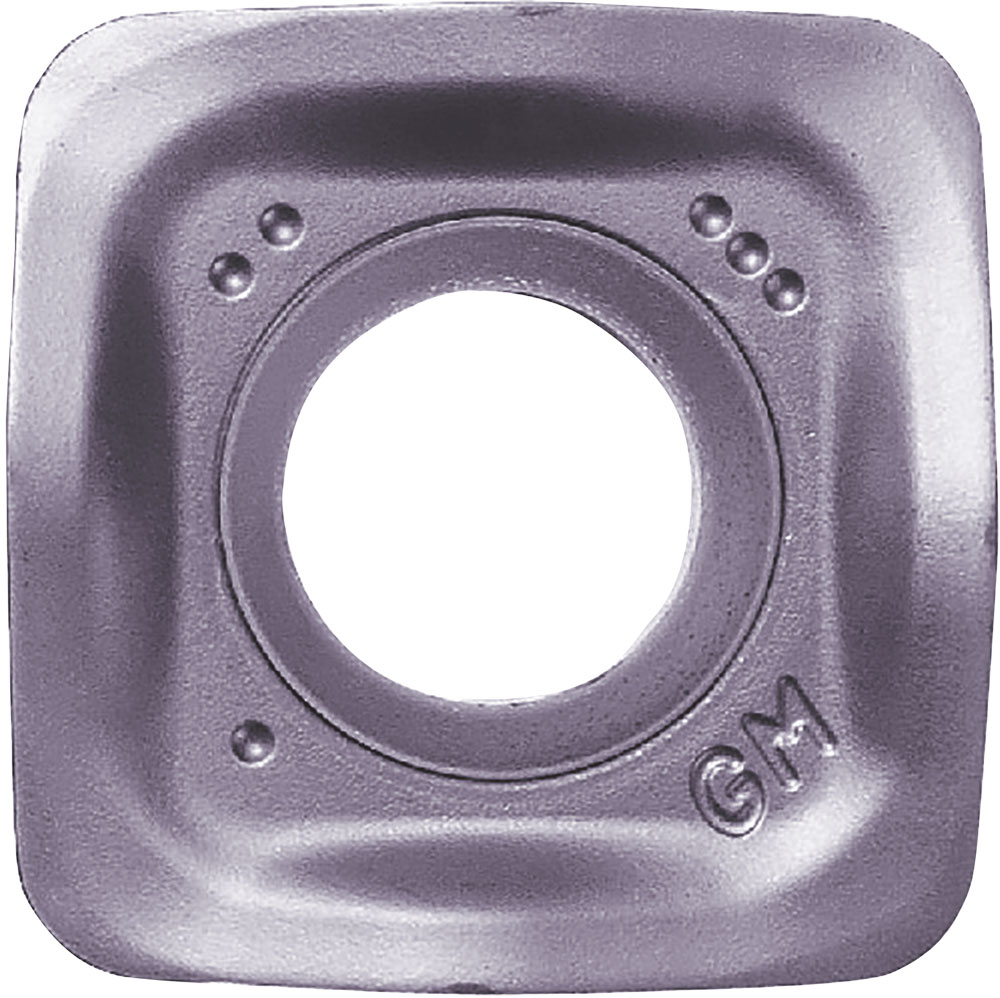

Kyocera SOMT 140520ERGM PR1525 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLB05627
$31.16
Kyocera SOMT 140520ERGM PR1525 Grade PVD Carbide, Square, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (P) Free-Cutting Steel, (P) Carbon/Alloy Steel and (P) Mold Steel, (M) Austenitic Stainless Steel

Specifications

Series
MFHR
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Free-Cutting Steel|(P) Carbon/Alloy Steel
Corner Radius
2 mm
Corner Radius (Fractional)
5/64
Grade
PR1525
Inscribed Circle (Metric)
14.14
Thickness
5.56 mm
Style
SOMT
Application
Facing, Helical Milling, High Feed, Plunging, Pocketing, Ramping, Shouldering, Slotting
Thickness (Fractional)
7/32
Shape
90 Degree Square
Insert Holding Method
Screw
Old Material Number
8838813
ANSI Part Number
SOMT140520ERGMPR1525
ISO Part Number
SOMT140520ER-GM
Rake
Positive
Number of Cutting Edges
4
Insert Size
140520
Chipbreaker
ER-GM
Cutting Range
Roughing
Insert Included Angle (Degree)
90 degrees
Inscribed Circle (Decimal)
0.56
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFH-Raptor_W.pdf
