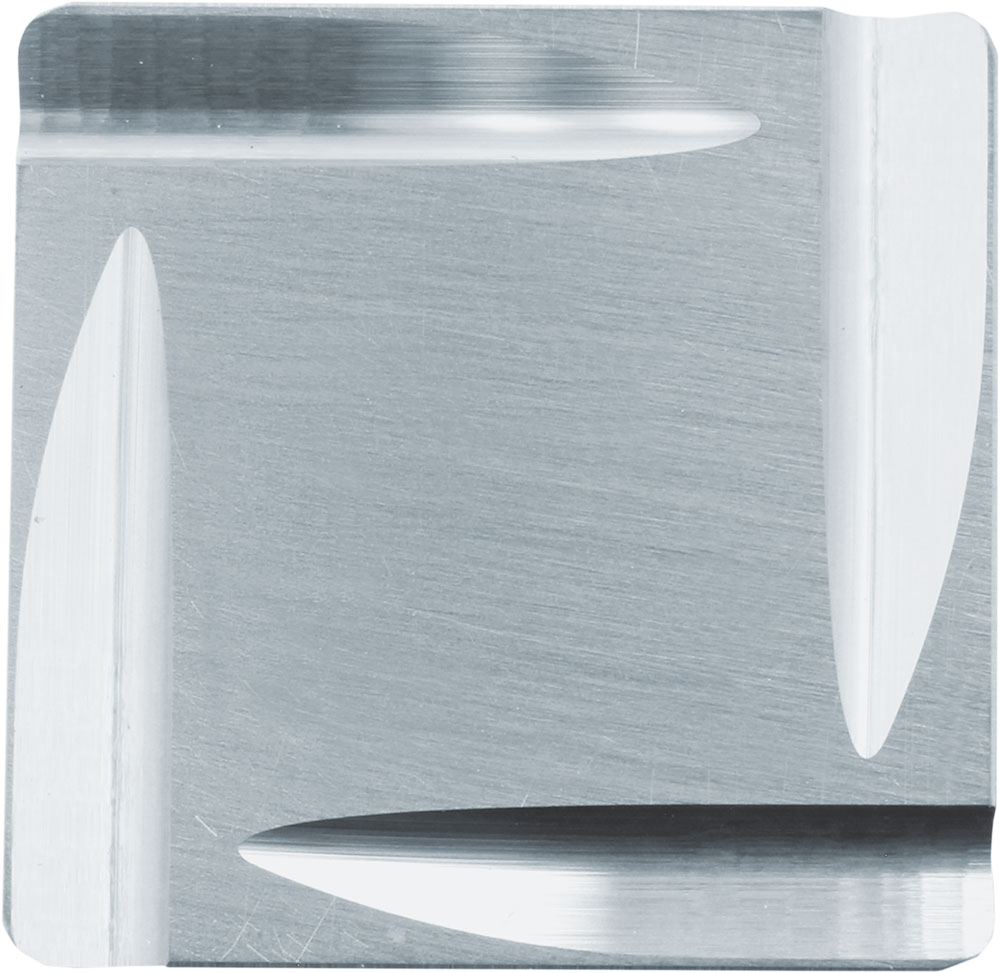

Kyocera SPGR 422L TN610 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSS05427
$31.43
Kyocera SPGR 422L TN610 Grade Uncoated Cermet, 11 Degree, Square, Positive Rake Angle, Left-Hand Turning Insert for Continuous and Finishing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Left-Hand
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/32 Inch
Included Angle
90 degrees
Thickness
1/8 Inch
Style
SPGR
Application
Boring, Chamfering, External Turning, Facing
Shape
90 Degree Square
Insert Holding Method
Clamp
Size
422
Old Material Number
8847806
ANSI Part Number
SPGR422LTN610
ISO Part Number
SPGR120308L
Rake
Positive
Material Group / Grade
TN610
Corner Radius (Metric)
0.80
Number of Cutting Edges
4
Thickness (Metric)
3.18
Cutting Range
Finishing
Usage Classification
Continuous
Insert Included Angle
90 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
