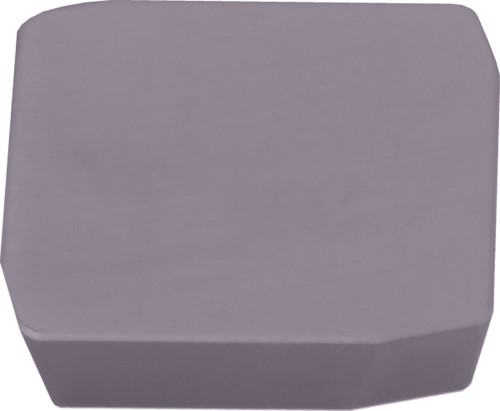

Kyocera Milling Insert SPKN53EDTR PR1210: TKA05435

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKA05435
$47.09

Kyocera GPM milling insert for high-temp alloys, 5/8 in (15.875 mm) IC. Carbide, MEGACOAT (PVD) coating. Manufacturer part number TKA05435.

Specifications

Series
GPM
Unit of Measure
Inch
Hand Direction
Right
Material
Carbide
Coating/Finish
MEGACOAT
IC Size (Metric)
15.875
Included Angle
90
Chip Breaker Type
EDTR
ANSI Designation
SPKN53EDTRPR1210
Insert Style
SPKN
Insert Thickness (Fractional)
3/16
Insert Thickness (Metric)
4.76
Insert Shape
Square
Insert Holding Method
Clamp
Secondary Workpiece Material
Cast Iron
Machining Operations
Chamfering, Facing, Shouldering
Insert Grade
PR1210
Rake
Positive
Number of Cutting Edges
4
Insert Size
53
ISO Designation
SPKN1504EDTR
Cutting Range
Roughing
Workpiece Material
High-Temp Alloy
IC Size (Fractional)
5/8
Pack quantity
10
Coating Process
PVD
Kyocera Milling Insert SPKN53EDTR PR1210: TKA05435
$47.09
