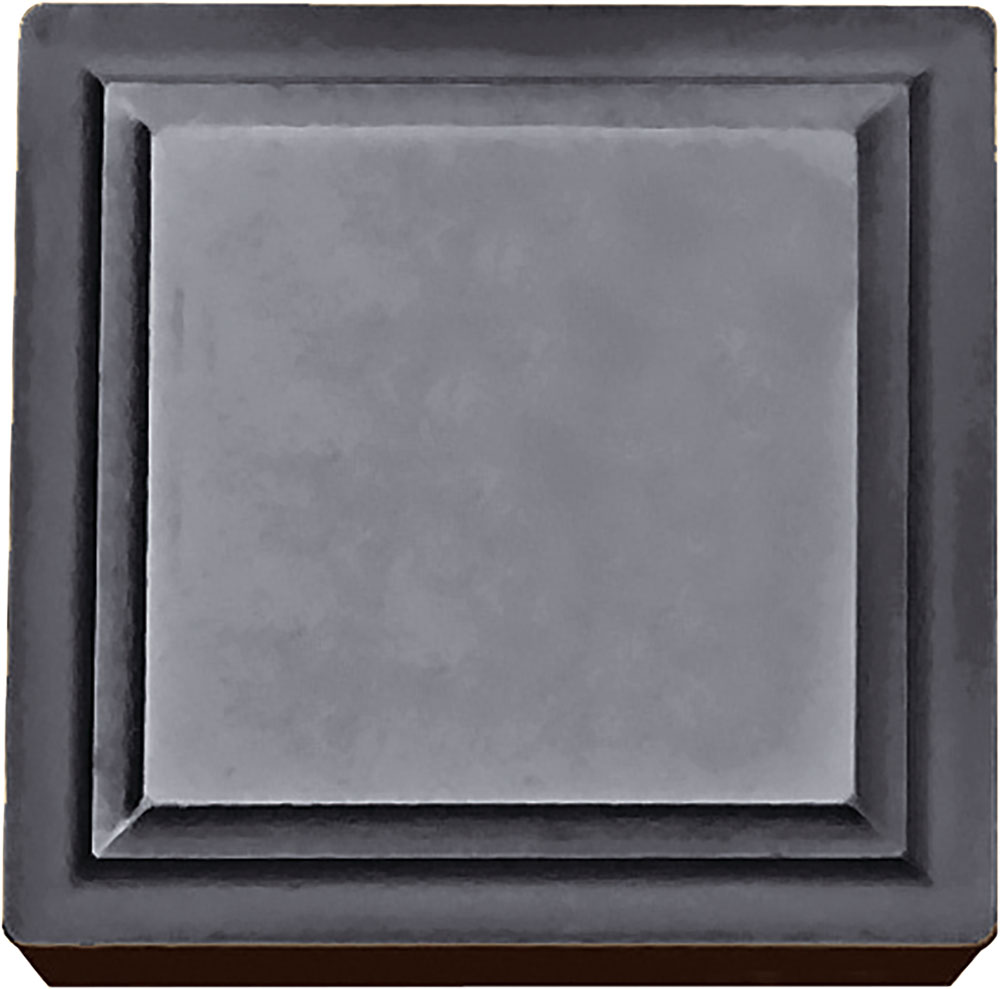

Kyocera SPMR 421 CA125P Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMK00387
$27.74
Kyocera SPMR 421 CA125P Grade CVD Carbide, 90 Degree Square, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/64 Inch
Included Angle
90 degrees
Thickness
1/8 Inch
Style
SPMR
Application
Boring, Chamfering, External Turning, Facing
Shape
90 Degree Square
Insert Holding Method
Clamp
Size
421
ANSI Part Number
SPMR421CA125P
ISO Part Number
SPMR120304
Rake
Positive
Material Group / Grade
CA125P
Corner Radius (Metric)
0.40
Number of Cutting Edges
4
Thickness (Metric)
3.18
Cutting Range
Medium
Usage Classification
Light Interruption
Insert Included Angle
90 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/CA115P_CA125P_CVD_Coated_Carbide_for_Steel.pdf
Kyocera SPMR 421 CA125P Grade CVD Carbide, Indexable Turning Insert
$27.74
