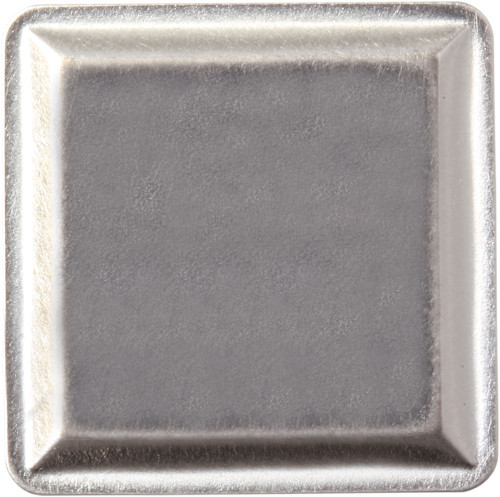

Kyocera Turning Insert SPMR421G TN620: TSR05465

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSR05465
$17.97

Kyocera ISOI turning insert for steel, 1/2 in (12.70 mm) IC, square shape, positive rake, 4 cutting edges, medium cutting range, clamp insert holding, neutral hand. Cermet, uncoated. Manufacturer part number TSR05465.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Insert Thickness (Fractional)
1/8
Corner Radius (Fractional)
1/64
Included Angle
90
ANSI Designation
SPMR421GTN620
Insert Style
SPMR
Insert Thickness (Metric)
3.18
Insert Shape
Square
Insert Holding Method
Clamp
Insert Size
421
Machining Operations
Boring, Chamfering, External Turning, Facing
Insert Grade
TN620
Rake
Positive
IC Size (Metric)
12.70
Corner Radius (Metric)
0.40
Number of Cutting Edges
4
Workpiece Material
Steel
ISO Designation
SPMR120304G
Cutting Range
Medium
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/2
Chip Breaker Type
G
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
