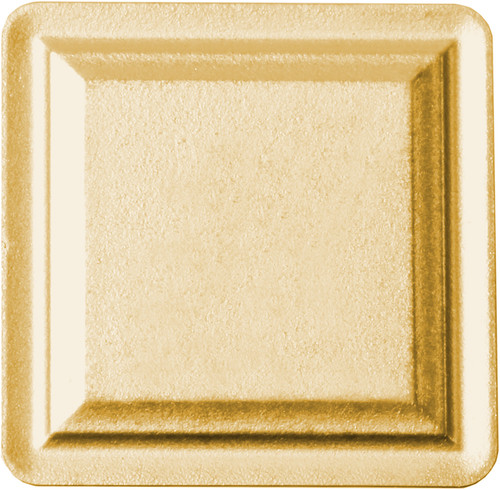

Kyocera SPMR 422 CA6525 Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJV05501
$20.28
Kyocera SPMR 422 CA6525 Grade CVD Carbide, 11 Degree, Square, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Medium in (M) Stainless Steel and (S) Heat-Resistant Alloy

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(M) Stainless Steel
Corner Radius
1/32 Inch
Included Angle
90 degrees
Thickness
1/8 Inch
Style
SPMR
Application
Boring, Chamfering, External Turning, Facing
Shape
90 Degree Square
Insert Holding Method
Clamp
Size
422
Old Material Number
8824315
ANSI Part Number
SPMR422CA6525
ISO Part Number
SPMR120308
Rake
Positive
Material Group / Grade
CA6525
Corner Radius (Metric)
0.80
Number of Cutting Edges
4
Thickness (Metric)
3.18
Cutting Range
Medium
Usage Classification
Light Interruption
Insert Included Angle
90 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
