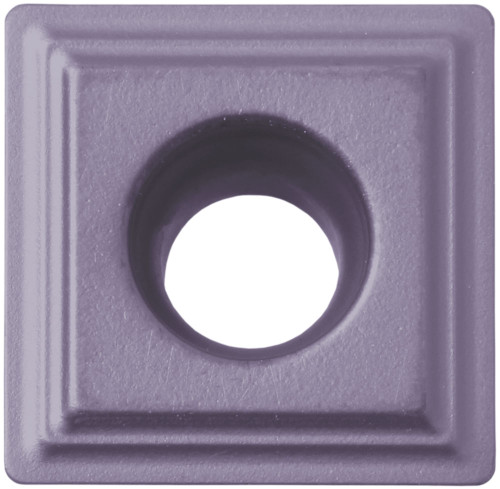

Kyocera SPMT 060208EZ PR1810 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLS00041
$29.90
Kyocera SPMT 060208EZ PR1810 Grade PVD Carbide, 90 Degree Square, Positive Rake Angle, Neutral Milling Insert for Roughing in (K) Gray Cast Iron, (K) Nodular Cast Iron

Specifications

Series
MEF
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(K) Gray Cast Iron|(K) Nodular Cast Iron
Corner Radius
0.80 mm
Corner Radius (Fractional)
1/32
Grade
PR1810
Inscribed Circle (Metric)
6.35
Thickness
2.38 mm
Style
SPMT
Application
Bolt Countersinking, Facing, Shouldering
Thickness (Fractional)
3/32
Shape
90 Degree Square
Insert Holding Method
Screw
ANSI Part Number
SPMT060208EZPR1810
ISO Part Number
SPMT060208E-Z
Rake
Positive
Number of Cutting Edges
4
Insert Size
060208
Chipbreaker
E-Z
Cutting Range
Roughing
Inscribed Circle (Fractional)
1/4
Insert Included Angle (Degree)
90 degrees
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
