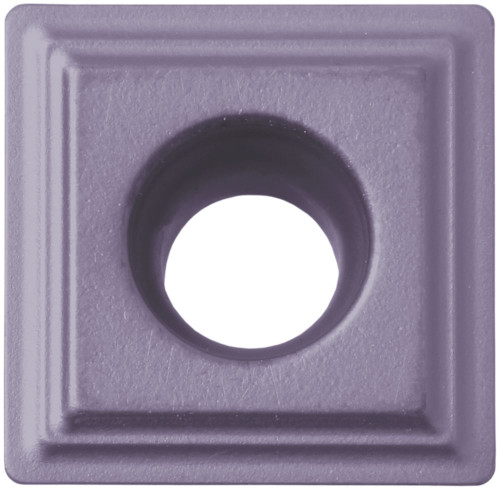

Kyocera SPMT 090304EZ PR1825 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLT00069
$29.90
Kyocera SPMT 090304EZ PR1825 Grade PVD Carbide, 90 Degree Square, Positive Rake Angle, Neutral Milling Insert for Roughing in (P) Carbon/Alloy Steel, (P) Mold Steel and (M) Austenitic Stainless Steel

Specifications

Series
MEF
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel|(P) Mold Steel
Corner Radius
0.40 mm
Corner Radius (Fractional)
1/64
Grade
PR1825
Inscribed Circle (Metric)
9.53
Thickness
3.18 mm
Style
SPMT
Application
Bolt Countersinking, Facing, Shouldering
Thickness (Fractional)
1/8
Shape
90 Degree Square
Insert Holding Method
Screw
ANSI Part Number
SPMT090304EZPR1825
ISO Part Number
SPMT090304E-Z
Rake
Positive
Number of Cutting Edges
4
Insert Size
090304
Chipbreaker
E-Z
Cutting Range
Roughing
Inscribed Circle (Fractional)
3/8
Insert Included Angle (Degree)
90 degrees
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
