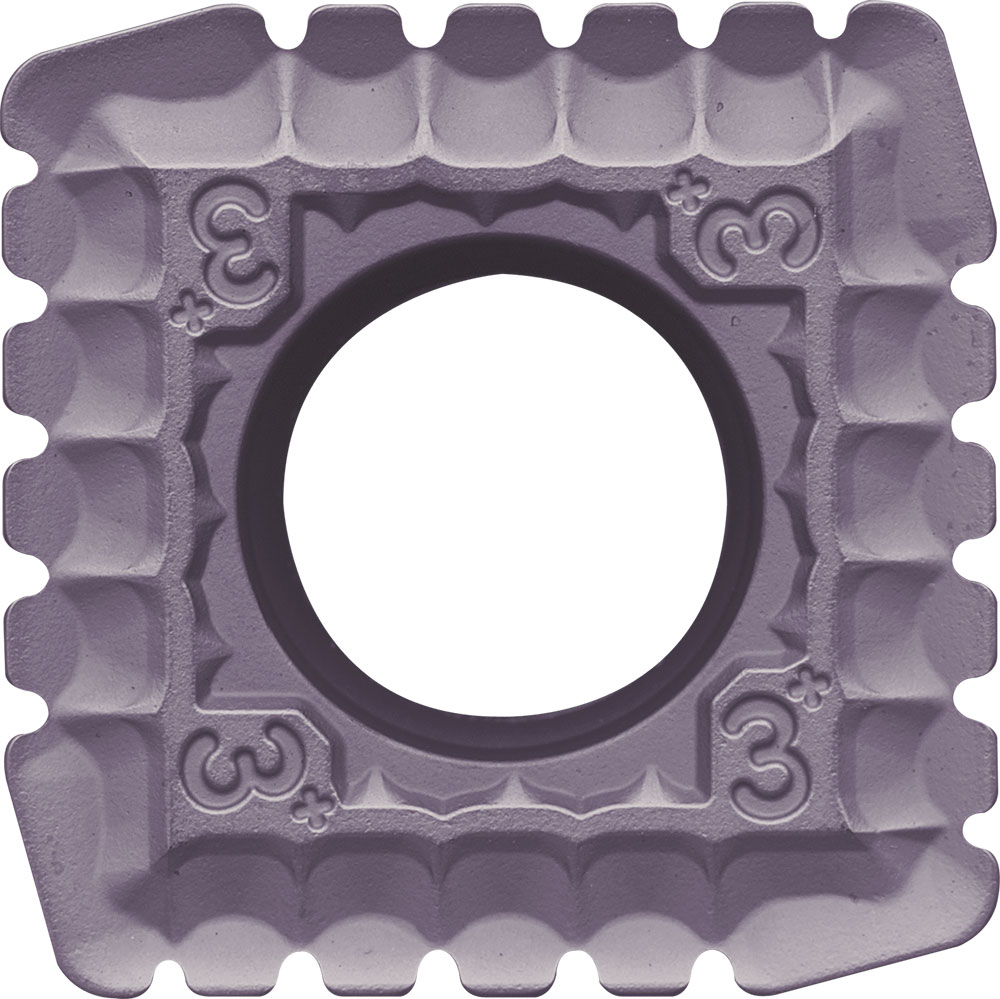

Kyocera SPMT 1806EDERNB3P PR1810 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLS00145
$62.71
Kyocera SPMT 1806EDERNB3P PR1810 Grade PVD Carbide, 90 Degree Square, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (K) Gray Cast Iron, (K) Nodular Cast Iron

Specifications

Series
MSRS
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(K) Gray Cast Iron|(K) Nodular Cast Iron
Corner Radius
1.20 mm
Corner Radius (Fractional)
3/64
Grade
PR1810
Inscribed Circle (Metric)
18
Thickness
6.35 mm
Style
SPMT
Application
Facing, Heavy Milling, Shouldering, Slotting
Thickness (Fractional)
1/4
Shape
90 Degree Square
Insert Holding Method
Screw
ANSI Part Number
SPMT1806EDERNB3PPR1810
ISO Part Number
SPMT1806EDER-NB3P
Rake
Positive
Number of Cutting Edges
4
Insert Size
1806
Chipbreaker
EDER-NB3P
Cutting Range
Roughing
Insert Included Angle (Degree)
90 degrees
Inscribed Circle (Decimal)
0.71
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
