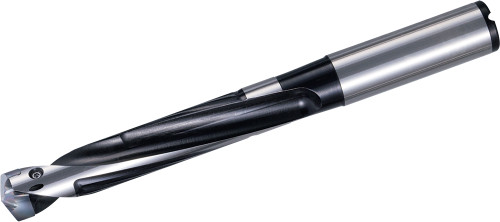

Kyocera Replaceable Tip Drill SS0375DRA090M5, manufacturer part number THD11374.
Specifications: Cutting Diameter: 0.3543 - 0.3736 in (9.00 - 9.49 mm); Overall Length: 4.0161 in (102.01 mm); Number of Flutes: 2; Insert Holding Method: Screw; Old Material Number: 8607176; Usable Length: 1.8701 in (47.50 mm); Cutting Diameter Minimum: 0.3543 in (9.00 mm); Cutting Diameter Maximum: 0.3736 in (9.49 mm); Connection Diameter: 0.3752 in (9.53 mm); Number of Inserts: 1; Coolant Option: Internal Coolant; Hand Direction: Right; Insert Style: SS…DRA; ANSI Designation: SS0375DRA090M5; ISO Designation: SS0375-DRA090M-5; Machining Operations: Drilling; LxD Ratio: 5xD; Shank Type: Straight.
Material: Steel. Series: DRA. Unit of measure: Inch.
