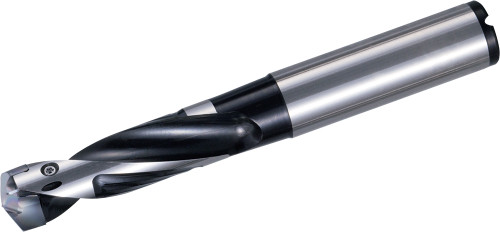

Kyocera Replaceable Tip Drill SS0500DRA105M3: .4134-.4327" Cut Dia, 3xD, .500" Shank, THD11330

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THD11330
$494.02

Kyocera DRA replaceable tip drill, 2 flutes, straight shank, internal coolant. Steel body. Manufacturer part number THD11330.

Specifications

Series
DRA
Unit of Measure
Inch
Shank Type
Straight
Hand Direction
Right
Material
Steel
Overall Length (Decimal)
3.7012
Cutting Diameter Maximum (Decimal)
0.4327
Number of Flutes
2
Connection Diameter (Decimal)
0.5000
Size System
Decimal
ANSI Designation
SS0500DRA105M3
Insert Holding Method
Screw
Coolant Option
Internal Coolant
ISO Designation
SS0500-DRA105M-3
Machining Operations
Drilling
Insert Style
SS…DRA
Usable Length (Decimal)
1.2988
Usable Length (Metric)
32.99
Cutting Diameter Minimum (Decimal)
0.4134
Overall Length (Metric)
94.01
Cutting Diameter (Decimal)
0.4134 - 0.4327
Cutting Diameter (Metric)
10.50 - 10.99
Cutting Diameter Minimum (Metric)
10.50
Cutting Diameter Maximum (Metric)
10.99
Connection Diameter (Metric)
12.70
Number of Inserts
1
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRA_Magic_Drills_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
LxD Ratio
3xD
