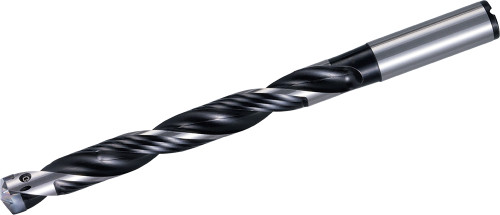

Kyocera Replaceable Tip Drill SS0500DRA110M8: .4331-.4524" Cut Dia, 8xD, .500" Shank, THD11432

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THD11432
$695.82

Kyocera DRA replaceable tip drill, 2 flutes, straight shank, internal coolant. Steel body. Manufacturer part number THD11432.

Specifications

Series
DRA
Unit of Measure
Inch
Shank Type
Straight
Hand Direction
Right
Material
Steel
Overall Length (Decimal)
6.0630
Cutting Diameter Maximum (Decimal)
0.4524
Number of Flutes
2
Connection Diameter (Decimal)
0.5000
Size System
Decimal
ANSI Designation
SS0500DRA110M8
Insert Holding Method
Screw
Coolant Option
Internal Coolant
ISO Designation
SS0500-DRA110M-8
Machining Operations
Drilling
Insert Style
SS…DRA
Usable Length (Decimal)
3.6221
Usable Length (Metric)
92.00
Cutting Diameter Minimum (Decimal)
0.4331
Overall Length (Metric)
154.00
Cutting Diameter (Decimal)
0.4331 - 0.4524
Cutting Diameter (Metric)
11.00 - 11.49
Cutting Diameter Minimum (Metric)
11.00
Cutting Diameter Maximum (Metric)
11.49
Connection Diameter (Metric)
12.70
Number of Inserts
1
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRA_Magic_Drills_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
LxD Ratio
8xD
