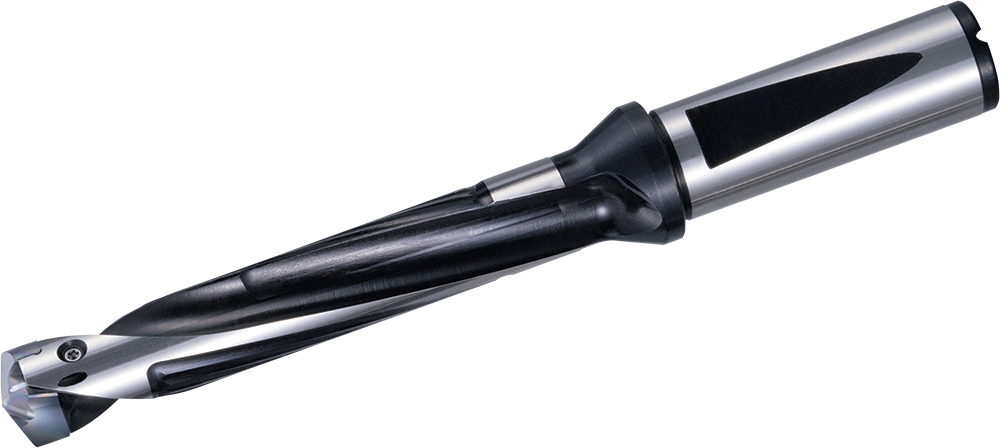

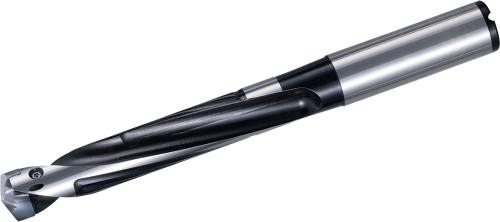

Kyocera SS0625DRA120M5, DRA Magic Drill 0.4724-0.4917" Cutting Diameter, 5xD, Replaceable Tip Drill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THD11386
$581.20
Kyocera SS0625DRA120M5, DRA Magic Drill 0.4724-0.4917" Cutting Diameter, 0.6250" Diameter Straight Shank, Coolant-Through Replaceable Tip Drill

Specifications

Series
DRA
Unit of Measure
Imperial
Shank Type
Straight Shank
Cutting Direction
Right
Material
Steel
Weldon Flat
No
Max. Cutting Diameter
0.49 Inch
Number of Flutes
2
Shank Diameter
0.63 Inch
Grade
GR99
Application
Drilling
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8607182
ANSI Part Number
SS0625DRA120M5
ISO Part Number
SS0625-DRA120M-5
Tool Style
SS…DRA
Usable Length (Decimal)
2.46
Usable Length (Metric)
62.51
Min. Cutting Diameter
0.47 Inch
Depth x Diameter Ratio
5 x D
Cutting Diameter (Decimal)
0.47 - 0.49
Cutting Diameter (Metric)
12 - 12.49
Cutting Diameter Minimum (Metric)
12
Cutting Diameter Maximum (Metric)
12.49
Connection Diameter (Metric)
15.88
Number of Inserts
1
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRA_Magic_Drills_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
