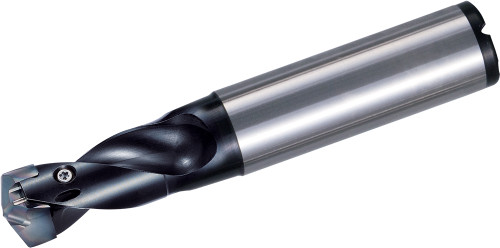

Kyocera Replaceable Tip Drill SS0625DRA135M15: .5315-.5508" Cut Dia, 1.5xD, .6252" Shank, THD11572

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THD11572
$452.02

Kyocera DRA replaceable tip drill, 2 flutes, straight shank, internal coolant. Steel body. Manufacturer part number THD11572.

Specifications

Series
DRA
Unit of Measure
Inch
Shank Type
Straight
Hand Direction
Right
Material
Steel
Overall Length (Decimal)
3.5039
Cutting Diameter Maximum (Decimal)
0.5508
Number of Flutes
2
Connection Diameter (Decimal)
0.6250
Size System
Decimal
ANSI Designation
SS0625DRA135M15
Insert Holding Method
Screw
Coolant Option
Internal Coolant
ISO Designation
SS0625-DRA135M-1.5
Machining Operations
Drilling
Insert Style
SS…DRA
Usable Length (Decimal)
0.8272
Usable Length (Metric)
21.01
Cutting Diameter Minimum (Decimal)
0.5315
Overall Length (Metric)
89.00
Cutting Diameter (Decimal)
0.5315 - 0.5508
Cutting Diameter (Metric)
13.50 - 13.99
Cutting Diameter Minimum (Metric)
13.50
Cutting Diameter Maximum (Metric)
13.99
Connection Diameter (Metric)
15.88
Number of Inserts
1
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRA_Magic_Drills_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
LxD Ratio
1.5xD
