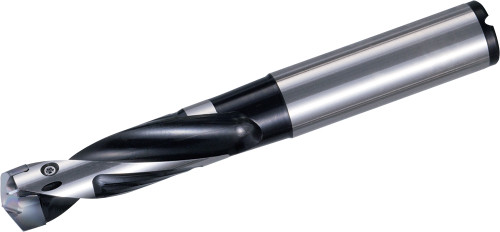

Kyocera Replaceable Tip Drill SS1000DRA220M3, manufacturer part number THD11362.
Specifications: Cutting Diameter: 0.8661 - 0.9051 in (22.00 - 22.99 mm); Overall Length: 6.2201 in (157.99 mm); Number of Flutes: 2; Insert Holding Method: Screw; Old Material Number: 8607170; Usable Length: 2.7169 in (69.01 mm); Cutting Diameter Minimum: 0.8661 in (22.00 mm); Cutting Diameter Maximum: 0.9051 in (22.99 mm); Connection Diameter: 1.0000 in (25.40 mm); Number of Inserts: 1; Coolant Option: Internal Coolant; Hand Direction: Right; Insert Style: SS…DRA; ANSI Designation: SS1000DRA220M3; ISO Designation: SS1000-DRA220M-3; Machining Operations: Drilling; LxD Ratio: 3xD; Shank Type: Straight.
Material: Steel. Series: DRA. Unit of measure: Inch.
