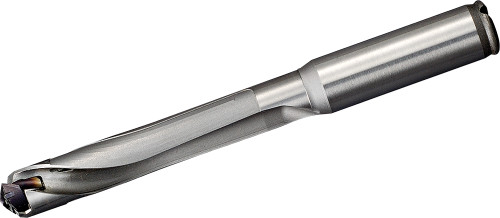

Kyocera Replaceable Tip Drill SS10DRC085M5: 8.50-8.99mm Cut Dia, 5xD, 10.00mm Shank, THD07086

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THD07086
$593.09

Kyocera DRC replaceable tip drill, 2 flutes, straight shank, internal coolant. Steel body. Manufacturer part number THD07086.

Specifications

Series
DRC
Unit of Measure
Metric
Shank Type
Straight
Hand Direction
Right
Material
Steel
Overall Length (Decimal)
3.9370
Cutting Diameter Maximum (Metric)
8.99
Number of Flutes
2
Connection Diameter (Metric)
10.00
Size System
Metric
ANSI Designation
SS10DRC085M5
Insert Holding Method
Clamp
Coolant Option
Internal Coolant
ISO Designation
SS10-DRC085M-5
Machining Operations
Drilling
Connection Diameter (Decimal)
0.3937
Insert Style
SS…DRC
Usable Length (Decimal)
1.7717
Usable Length (Metric)
45.00
Cutting Diameter Minimum (Metric)
8.50
Overall Length (Metric)
100.00
Cutting Diameter (Decimal)
0.3347 - 0.3539
Cutting Diameter (Metric)
8.50 - 8.99
Cutting Diameter Minimum (Decimal)
0.3347
Cutting Diameter Maximum (Decimal)
0.3539
Number of Inserts
1
LxD Ratio
5xD
Kyocera Replaceable Tip Drill SS10DRC085M5: 8.50-8.99mm Cut Dia, 5xD, 10.00mm Shank, THD07086
$593.09
Add to Your List
Request a Quote
