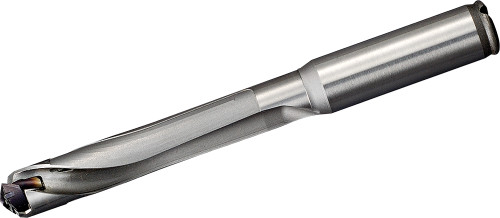

Kyocera Replaceable Tip Drill SS10DRC095M3, manufacturer part number THD07095.
Specifications: Cutting Diameter: 9.50 - 9.99 mm (0.3740 - 0.3933 in); Overall Length: 85.00 mm (3.3465 in); Number of Flutes: 2; Insert Holding Method: Clamp; Old Material Number: 8827441; Connection Diameter: 10.00 mm (0.3937 in); Usable Length: 30.00 mm (1.1811 in); Cutting Diameter Minimum: 9.50 mm (0.3740 in); Cutting Diameter Maximum: 9.99 mm (0.3933 in); Number of Inserts: 1; Coolant Option: Internal Coolant; Hand Direction: Right; Insert Style: SS…DRC; ANSI Designation: SS10DRC095M3; ISO Designation: SS10-DRC095M-3; Machining Operations: Drilling; LxD Ratio: 3xD; Shank Type: Straight.
Material: Steel. Series: DRC. Unit of measure: Metric.
