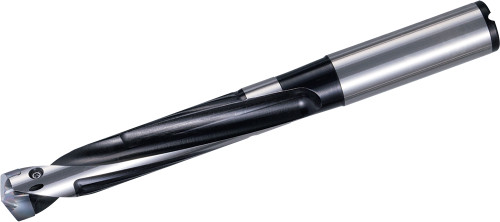

Kyocera Replaceable Tip Drill SS12DRA105M5: 10.50-10.99mm Cut Dia, 5xD, 12.00mm Shank, THD08106

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THD08106
$556.62

Kyocera DRA replaceable tip drill, 2 flutes, straight shank, internal coolant. Steel body. Manufacturer part number THD08106.

Specifications

Series
DRA
Unit of Measure
Metric
Shank Type
Straight
Hand Direction
Right
Material
Steel
Overall Length (Decimal)
4.5669
Cutting Diameter Maximum (Metric)
10.99
Number of Flutes
2
Connection Diameter (Metric)
12.00
Size System
Metric
ANSI Designation
SS12DRA105M5
Insert Holding Method
Screw
Coolant Option
Internal Coolant
ISO Designation
SS12-DRA105M-5
Machining Operations
Drilling
Connection Diameter (Decimal)
0.4724
Insert Style
SS…DRA
Usable Length (Decimal)
2.1654
Usable Length (Metric)
55.00
Cutting Diameter Minimum (Metric)
10.50
Overall Length (Metric)
116.00
Cutting Diameter (Decimal)
0.4134 - 0.4327
Cutting Diameter (Metric)
10.50 - 10.99
Cutting Diameter Minimum (Decimal)
0.4134
Cutting Diameter Maximum (Decimal)
0.4327
Number of Inserts
1
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRA_Magic_Drills_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
LxD Ratio
5xD
