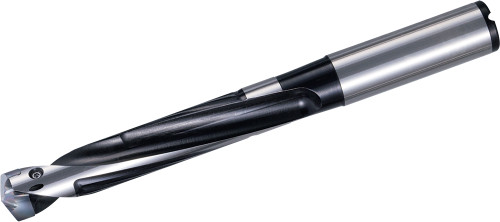

Kyocera SS14DRA125M5, DRA Magic Drill 12.50-12.99mm Cutting Diameter, 5xD, Replaceable Tip Drill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THD08126
$556.62
Kyocera SS14DRA125M5, DRA Magic Drill 12.50-12.99mm Cutting Diameter, 14.00mm Diameter Straight Shank, Coolant-Through Replaceable Tip Drill

Specifications

Series
DRA
Unit of Measure
Metric
Shank Type
Straight Shank
Cutting Direction
Right
Material
Steel
Weldon Flat
No
Max. Cutting Diameter
12.99 mm
Number of Flutes
2
Shank Diameter
14 mm
Grade
GR99
Application
Drilling
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8608193
ANSI Part Number
SS14DRA125M5
ISO Part Number
SS14-DRA125M-5
Connection Diameter (Decimal)
0.55
Tool Style
SS…DRA
Usable Length (Decimal)
2.56
Usable Length (Metric)
65
Min. Cutting Diameter
12.50 mm
Depth x Diameter Ratio
5 x D
Cutting Diameter (Decimal)
0.49 - 0.51
Cutting Diameter (Metric)
12.50 - 12.99
Cutting Diameter Minimum (Decimal)
0.49
Cutting Diameter Maximum (Decimal)
0.51
Number of Inserts
1
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRA_Magic_Drills_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
