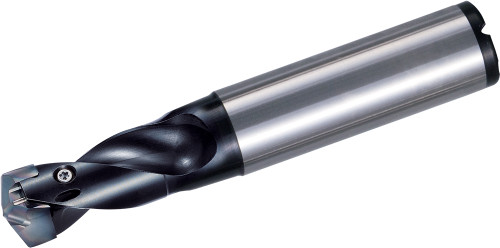

Kyocera Replaceable Tip Drill SS16DRA150M15: 15.00-15.99mm Cut Dia, 1.5xD, 16.00mm Shank, THD11504

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THD11504
$422.47

Kyocera DRA replaceable tip drill, 2 flutes, straight shank, internal coolant. Steel body. Manufacturer part number THD11504.

Specifications

Series
DRA
Unit of Measure
Metric
Shank Type
Straight
Hand Direction
Right
Material
Steel
Overall Length (Decimal)
3.7402
Cutting Diameter Maximum (Metric)
15.99
Number of Flutes
2
Connection Diameter (Metric)
16.00
Size System
Metric
ANSI Designation
SS16DRA150M15
Insert Holding Method
Screw
Coolant Option
Internal Coolant
ISO Designation
SS16-DRA150M-1.5
Machining Operations
Drilling
Connection Diameter (Decimal)
0.6299
Insert Style
SS…DRA
Usable Length (Decimal)
0.9449
Usable Length (Metric)
24.00
Cutting Diameter Minimum (Metric)
15.00
Overall Length (Metric)
95.00
Cutting Diameter (Decimal)
0.5906 - 0.6295
Cutting Diameter (Metric)
15.00 - 15.99
Cutting Diameter Minimum (Decimal)
0.5906
Cutting Diameter Maximum (Decimal)
0.6295
Number of Inserts
1
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRA_Magic_Drills_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
LxD Ratio
1.5xD
