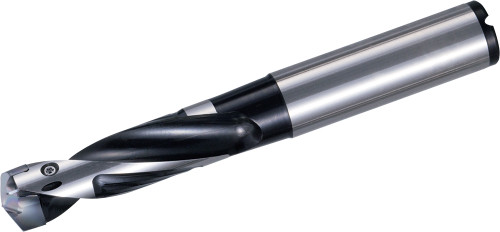

Kyocera SS20DRA190M3, DRA Magic Drill 19.00-19.99mm Cutting Diameter, 3xD, Replaceable Tip Drill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THD08190
$581.14
Kyocera SS20DRA190M3, DRA Magic Drill 19.00-19.99mm Cutting Diameter, 20.00mm Diameter Straight Shank, Coolant-Through Replaceable Tip Drill

Specifications

Series
DRA
Unit of Measure
Metric
Shank Type
Straight Shank
Cutting Direction
Right
Material
Steel
Weldon Flat
No
Max. Cutting Diameter
19.99 mm
Number of Flutes
2
Shank Diameter
20 mm
Grade
GR99
Application
Drilling
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8608132
ANSI Part Number
SS20DRA190M3
ISO Part Number
SS20-DRA190M-3
Connection Diameter (Decimal)
0.79
Tool Style
SS…DRA
Usable Length (Decimal)
2.36
Usable Length (Metric)
60
Min. Cutting Diameter
19 mm
Depth x Diameter Ratio
3 x D
Cutting Diameter (Decimal)
0.75 - 0.79
Cutting Diameter (Metric)
19 - 19.99
Cutting Diameter Minimum (Decimal)
0.75
Cutting Diameter Maximum (Decimal)
0.79
Number of Inserts
1
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRA_Magic_Drills_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
