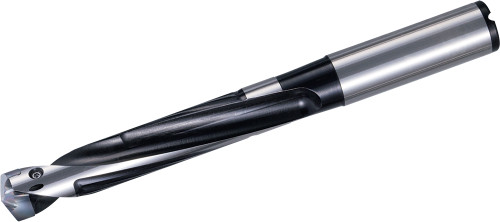

Kyocera Replaceable Tip Drill SS25DRA200M5: 20.00-20.99mm Cut Dia, 5xD, 25.00mm Shank, THD08201

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THD08201
$836.51

Kyocera DRA replaceable tip drill, 2 flutes, straight shank, internal coolant. Steel body. Manufacturer part number THD08201.

Specifications

Series
DRA
Unit of Measure
Metric
Shank Type
Straight
Hand Direction
Right
Material
Steel
Overall Length (Decimal)
7.5197
Cutting Diameter Maximum (Metric)
20.99
Number of Flutes
2
Connection Diameter (Metric)
25.00
Size System
Metric
ANSI Designation
SS25DRA200M5
Insert Holding Method
Screw
Coolant Option
Internal Coolant
ISO Designation
SS25-DRA200M-5
Machining Operations
Drilling
Connection Diameter (Decimal)
0.9843
Insert Style
SS…DRA
Usable Length (Decimal)
4.1339
Usable Length (Metric)
105.00
Cutting Diameter Minimum (Metric)
20.00
Overall Length (Metric)
191.00
Cutting Diameter (Decimal)
0.7874 - 0.8264
Cutting Diameter (Metric)
20.00 - 20.99
Cutting Diameter Minimum (Decimal)
0.7874
Cutting Diameter Maximum (Decimal)
0.8264
Number of Inserts
1
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/DRA_Magic_Drills_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
LxD Ratio
5xD
