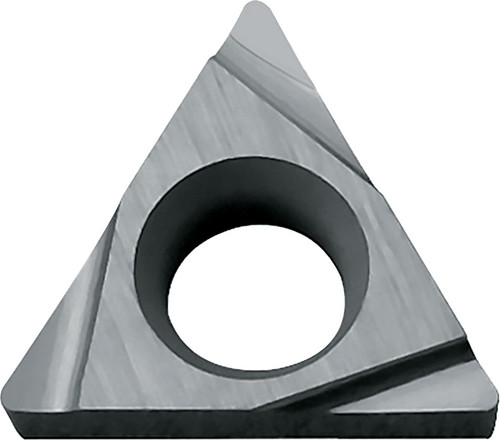

Kyocera TBET 12102ML PR1725 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM00252
$39.31
Kyocera TBET 12102ML PR1725 Grade PVD Carbide, 5 Degree, Triangle, Positive Rake Angle, Left-Hand Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel and (P) Free-Cutting Steel, (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Left-Hand
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
60 degrees
Thickness
1/16 Inch
Style
TBET
Application
Back Boring, Boring, Copying, Internal Facing
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
12102
Old Material Number
8863502
ANSI Part Number
TBET12102MLPR1725
ISO Part Number
TBET060101ML
Rake
Positive
Material Group / Grade
PR1725
Corner Radius (Metric)
0.10
Number of Cutting Edges
3
Thickness (Metric)
1.59
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
3.97
Inscribed Circle
5/32 Inch
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
Kyocera TBET 12102ML PR1725 Grade PVD Carbide, Indexable Turning Insert
$39.31
