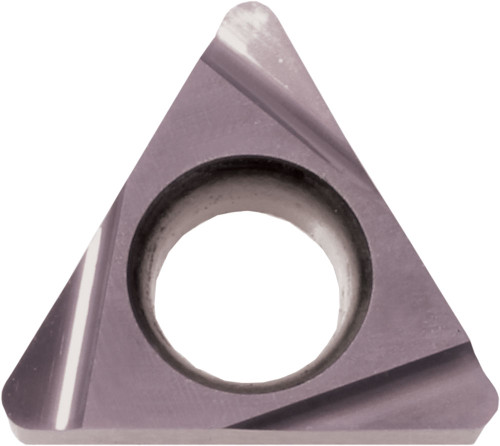

Kyocera Turning Insert TBGT12105L PR930: TKT02520

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKT02520
$39.31

Kyocera Turning Insert TBGT12105L PR930, manufacturer part number TKT02520.

Specifications: IC Size: 5/32 in (3.97 mm); Insert Thickness: 1/16 in (1.59 mm); Corner Radius: 0.0080 in (0.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8807337; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 12105; Hand Direction: Left; Insert Style: TBGT; ANSI Designation: TBGT12105LPR930; ISO Designation: TBGT060102L; Included Angle: 60 degrees; Machining Operations: Back Boring, Boring, Copying, Internal Facing; Insert Grade: PR930; Workpiece Material: Steel, Stainless Steel; Insert Shape: Triangle; Coating Process: PVD.

Material: Carbide. Coating/Finish: TiCN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Left
Material
Carbide
Coating/Finish
TiCN
IC Size (Metric)
3.97
Included Angle
60
Corner Radius (Decimal)
0.0080
Insert Style
TBGT
Insert Thickness (Fractional)
1/16
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
12105
Old Material Number
8807337
Insert Thickness (Metric)
1.59
Machining Operations
Back Boring, Boring, Copying, Internal Facing
Rake
Positive
IC Size (Fractional)
5/32
Corner Radius (Metric)
0.20
Number of Cutting Edges
3
Insert Grade
PR930
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
ISO Designation
TBGT060102L
Workpiece Material
Steel, Stainless Steel
ANSI Designation
TBGT12105LPR930
Pack quantity
10
Coating Process
PVD
