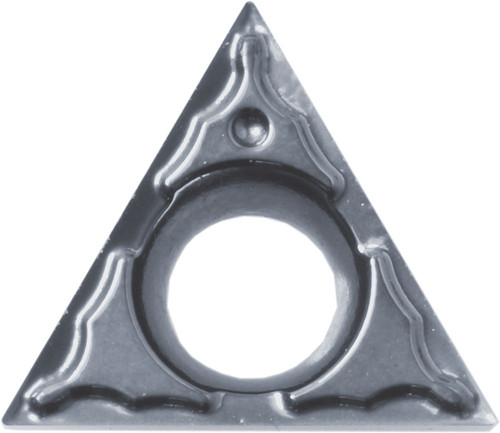

Kyocera TBGT 12105MPCF PR1725 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM00259
$39.31
Kyocera TBGT 12105MPCF PR1725 Grade PVD Carbide, 5 Degree, Triangle, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel and (P) Free-Cutting Steel, (M) Stainless Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
60 degrees
Thickness
1/16 Inch
Style
TBGT
Application
Back Boring, Boring, Copying, Internal Facing
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
12105
Old Material Number
8863509
ANSI Part Number
TBGT12105MPCFPR1725
ISO Part Number
TBGT060102MP-CF
Rake
Positive
Material Group / Grade
PR1725
Corner Radius (Metric)
0.20
Number of Cutting Edges
3
Thickness (Metric)
1.59
Chipbreaker
CF
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
3.97
Inscribed Circle
5/32 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Molded_Sharp_Edge_Chipbreaker.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
