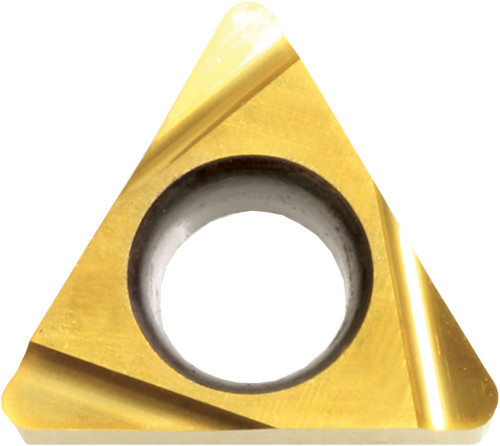

Kyocera Turning Insert TBGT12105R PV720: TLD05505

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLD05505
$26.37

Kyocera Turning Insert TBGT12105R PV720, manufacturer part number TLD05505.

Specifications: IC Size: 5/32 in (3.97 mm); Insert Thickness: 1/16 in (1.59 mm); Corner Radius: 0.0080 in (0.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8862698; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 12105; Hand Direction: Right; Insert Style: TBGT; ANSI Designation: TBGT12105RPV720; ISO Designation: TBGT060102R; Included Angle: 60 degrees; Machining Operations: Back Boring, Boring, Copying, Internal Facing; Insert Grade: PV720; Workpiece Material: Steel; Insert Shape: Triangle; Coating Process: PVD.

Material: Cermet. Coating/Finish: TiCN (MEGACOAT NANO). Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Cermet
Coating/Finish
TiCN (MEGACOAT NANO)
IC Size (Metric)
3.97
Included Angle
60
Corner Radius (Decimal)
0.0080
Insert Style
TBGT
Insert Thickness (Fractional)
1/16
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
12105
Old Material Number
8862698
Insert Thickness (Metric)
1.59
Machining Operations
Back Boring, Boring, Copying, Internal Facing
Rake
Positive
IC Size (Fractional)
5/32
Corner Radius (Metric)
0.20
Number of Cutting Edges
3
Insert Grade
PV720
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
ISO Designation
TBGT060102R
Workpiece Material
Steel
ANSI Designation
TBGT12105RPV720
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
Coating Process
PVD
Kyocera Turning Insert TBGT12105R PV720: TLD05505
$26.37
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
