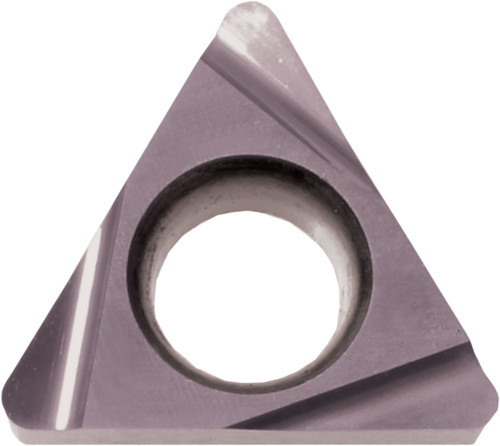

Kyocera Turning Insert TBGT1211L PR930: TKT02530

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKT02530
$39.31

Kyocera Turning Insert TBGT1211L PR930, manufacturer part number TKT02530.

Specifications: IC Size: 5/32 in (3.97 mm); Insert Thickness: 1/16 in (1.59 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8808177; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 1211; Hand Direction: Left; Insert Style: TBGT; ANSI Designation: TBGT1211LPR930; ISO Designation: TBGT060104L; Included Angle: 60 degrees; Machining Operations: Back Boring, Boring, Copying, Internal Facing; Insert Grade: PR930; Workpiece Material: Steel, Stainless Steel; Insert Shape: Triangle; Coating Process: PVD.

Material: Carbide. Coating/Finish: TiCN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Left
Material
Carbide
Coating/Finish
TiCN
Insert Thickness (Fractional)
1/16
Corner Radius (Fractional)
1/64
Included Angle
60
ANSI Designation
TBGT1211LPR930
Insert Style
TBGT
Insert Thickness (Metric)
1.59
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
1211
Old Material Number
8808177
Machining Operations
Back Boring, Boring, Copying, Internal Facing
Insert Grade
PR930
Rake
Positive
IC Size (Metric)
3.97
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Workpiece Material
Steel, Stainless Steel
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
5/32
Coating Process
PVD
ISO Designation
TBGT060104L
Pack quantity
10
