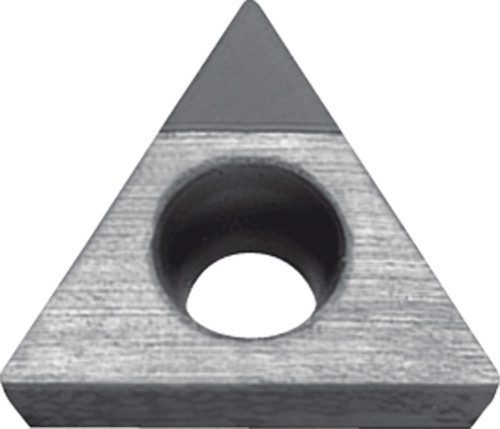

Kyocera Turning Insert TBGW1211 KPD001: TBR04052

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBR04052
$234.00

Kyocera Turning Insert TBGW1211 KPD001, manufacturer part number TBR04052.

Specifications: IC Size: 5/32 in (3.97 mm); Insert Thickness: 1/16 in (1.59 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8813973; Rake: Positive; Number of Cutting Edges: 1; Cutting Range: Finishing-Medium; Usage Classification: Continuous; Insert Size: 1211; Hand Direction: Neutral; Insert Style: TBGW; ANSI Designation: TBGW1211KPD001; ISO Designation: TBGW060104; Included Angle: 60 degrees; Machining Operations: Back Boring, Boring, Copying, Internal Facing; Insert Grade: KPD001; Workpiece Material: Non-Ferrous, High-Temp Alloy; Insert Shape: Triangle.

Material: PCD. Coating/Finish: Uncoated. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
PCD
Coating/Finish
Uncoated
IC Size (Metric)
3.97
Corner Radius (Fractional)
1/64
Included Angle
60
ANSI Designation
TBGW1211KPD001
Insert Style
TBGW
Insert Thickness (Metric)
1.59
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
1211
Old Material Number
8813973
Machining Operations
Back Boring, Boring, Copying, Internal Facing
Insert Grade
KPD001
Rake
Positive
Insert Thickness (Fractional)
1/16
Corner Radius (Metric)
0.40
Number of Cutting Edges
1
Workpiece Material
Non-Ferrous, High-Temp Alloy
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Fractional)
5/32
ISO Designation
TBGW060104
