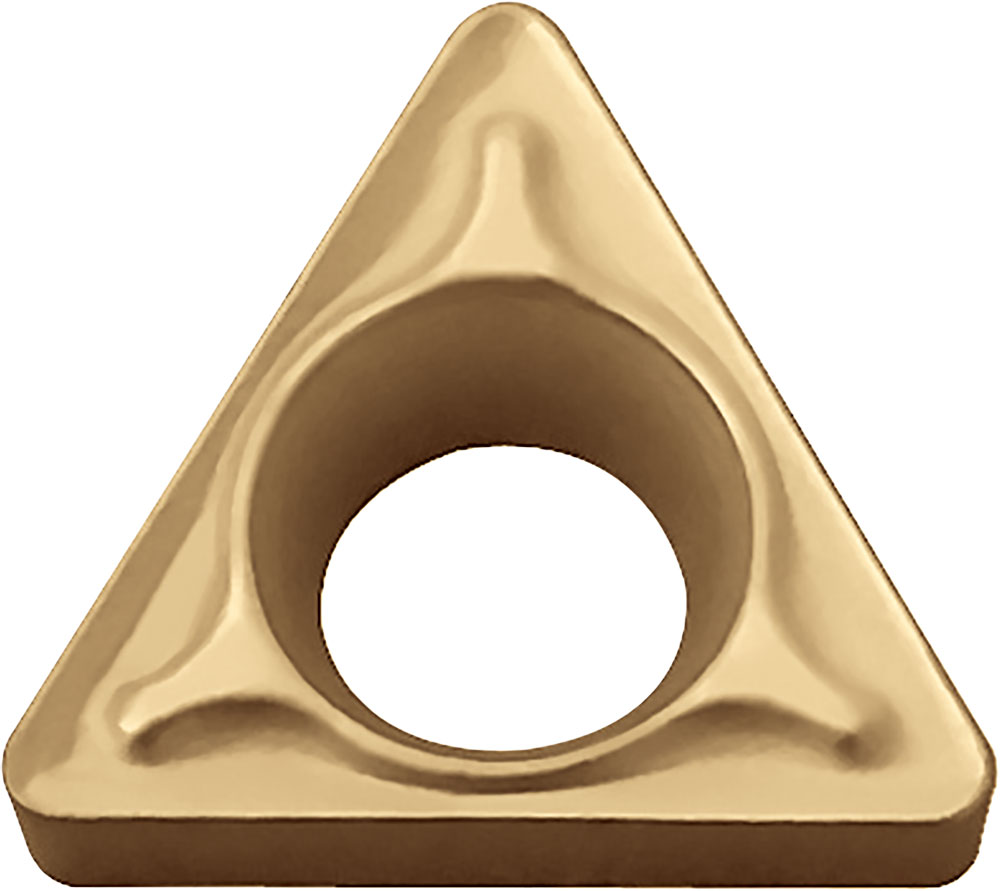

Kyocera TBMT 12105DP CCX Grade CVD Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMJ40062
$26.50
Kyocera TBMT 12105DP CCX Grade CVD Cermet, 5 Degree, Triangle, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing in (P) Carbon/Alloy Steel and (K) Gray Cast Iron, (K) Nodular Cast Iron

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
CVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
60 degrees
Thickness
1/16 Inch
Style
TBMT
Application
Back Boring, Boring, Copying, Internal Facing
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
12105
Old Material Number
8864256
ANSI Part Number
TBMT12105DPCCX
ISO Part Number
TBMT060102DP
Rake
Positive
Material Group / Grade
CCX
Corner Radius (Metric)
0.20
Number of Cutting Edges
3
Thickness (Metric)
1.59
Chipbreaker
DP
Cutting Range
Finishing
Usage Classification
Continuous
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
3.97
Inscribed Circle
5/32 Inch
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CCX_CVD_Cermet.pdf
