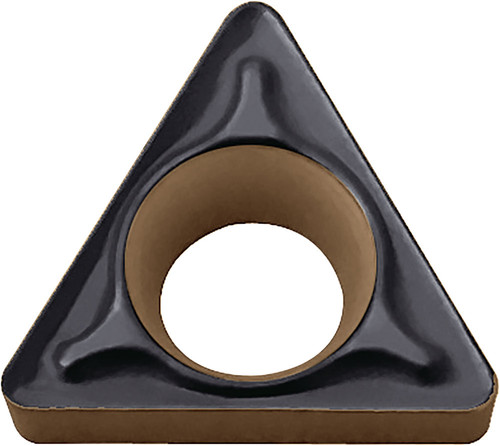

Kyocera Turning Insert TBMT1211DP CA125P: TMK00390

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMK00390
$26.50

Kyocera ISOI turning insert for steel, 5/32 in (3.97 mm) IC, triangle shape, positive rake, 3 cutting edges, finishing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TMK00390.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
1/16
Corner Radius (Fractional)
1/64
Included Angle
60
ANSI Designation
TBMT1211DPCA125P
Insert Style
TBMT
Insert Thickness (Metric)
1.59
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
1211
Machining Operations
Back Boring, Boring, Copying, Internal Facing
Insert Grade
CA125P
Rake
Positive
IC Size (Metric)
3.97
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Workpiece Material
Steel
ISO Designation
TBMT060104DP
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
5/32
Coating Process
CVD
Chip Breaker Type
DP
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/CA115P_CA125P_CVD_Coated_Carbide_for_Steel.pdf
