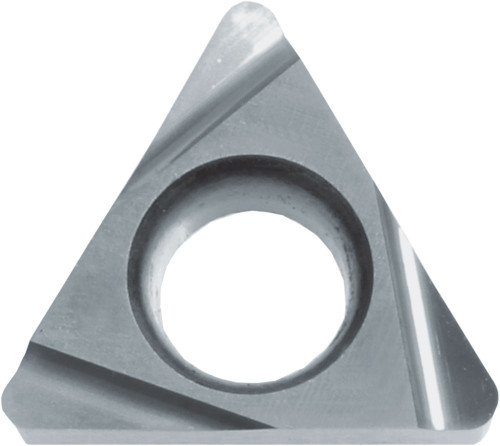

Kyocera Turning Insert TCGT21505R TN60: TSJ61656

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSJ61656
$26.37

Kyocera ISOI turning insert for steel, 1/4 in (6.35 mm) IC, triangle shape, positive rake, 3 cutting edges, finishing cutting range, screw or clamp insert holding, right hand. Cermet, uncoated. Manufacturer part number TSJ61656.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Cermet
Coating/Finish
Uncoated
IC Size (Metric)
6.35
Included Angle
60
Corner Radius (Decimal)
0.0080
Insert Style
TCGT
Insert Thickness (Fractional)
3/32
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
21505
Insert Thickness (Metric)
2.38
Machining Operations
External Turning
Rake
Positive
IC Size (Fractional)
1/4
Corner Radius (Metric)
0.20
Number of Cutting Edges
3
Insert Grade
TN60
Cutting Range
Finishing
Usage Classification
Continuous
ISO Designation
TCGT110202R
Workpiece Material
Steel
ANSI Designation
TCGT21505RTN60
Pack quantity
10
Kyocera Turning Insert TCGT21505R TN60: TSJ61656
$26.37
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
