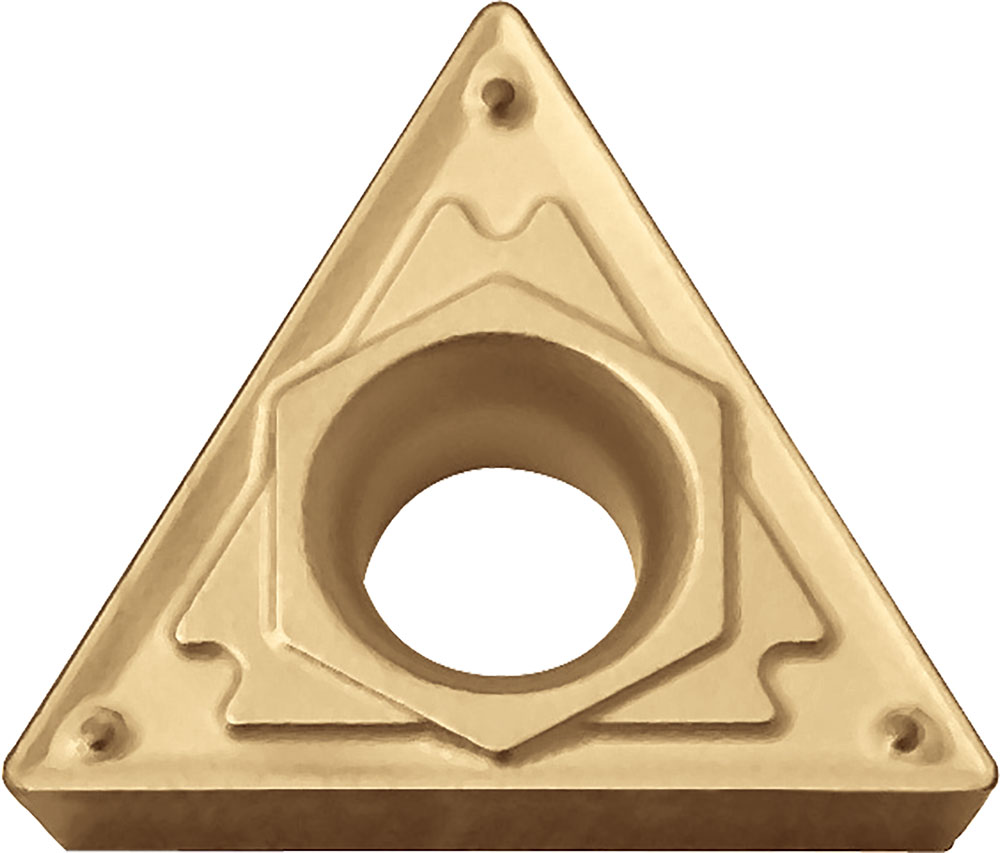

Kyocera Turning Insert TCMT18151HQ CCX: TMJ40065

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMJ40065
$18.89

Kyocera Turning Insert TCMT18151HQ CCX, manufacturer part number TMJ40065.

Specifications: IC Size: 7/32 in (5.56 mm); Insert Thickness: 3/32 in (2.38 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8864259; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Finishing-Medium; Usage Classification: Continuous; Insert Size: 18151; Hand Direction: Neutral; Insert Style: TCMT; ANSI Designation: TCMT18151HQCCX; Chip Breaker Type: HQ; ISO Designation: TCMT090204HQ; Included Angle: 60 degrees; Machining Operations: External Turning; Insert Grade: CCX; Workpiece Material: Steel, Cast Iron; Insert Shape: Triangle; Coating Process: CVD.

Material: Cermet. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
3/32
Corner Radius (Fractional)
1/64
Included Angle
60
ANSI Designation
TCMT18151HQCCX
Insert Style
TCMT
Insert Thickness (Metric)
2.38
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
18151
Old Material Number
8864259
Machining Operations
External Turning
Insert Grade
CCX
Rake
Positive
IC Size (Metric)
5.56
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Workpiece Material
Steel, Cast Iron
ISO Designation
TCMT090204HQ
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Fractional)
7/32
Coating Process
CVD
Chip Breaker Type
HQ
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CCX_CVD_Cermet.pdf
