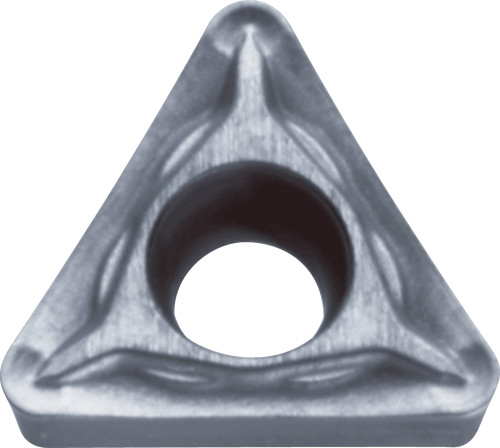

Kyocera TCMT 18152HP KW10 Grade Uncoated Carbide, Indexable Drilling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-OTM86679
$16.14
Kyocera TCMT 18152HP KW10 Grade Uncoated Carbide, Right-Hand Drilling Insert for (N) Non-Ferrous Metals, (K) Cast Iron and (S) Heat-Resistant Alloy (Stinger Drill)

Specifications

Series
SD
Unit of Measure
Fractional
Cutting Direction
Right
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(K) Cast Iron|(N) Non-Ferrous Materials
Type
Stinger Drill
Corner Radius (Metric)
0.80
Corner Radius
1/32 Inch
Grade
KW10
Thickness (Metric)
2.38
Inscribed Circle (Metric)
5.56
Thickness
3/32 Inch
Inscribed Circle Diameter
7/32 Inch
Style
TCMT
Application
Drilling
Chip Breaker Type
HP
Shape
60 Degree Triangle
Insert Holding Method
Screw
Size
18152
Old Material Number
8850479
ANSI Part Number
TCMT18152HPKW10
ISO Part Number
TCMT18152HP
Rake
Positive
Number of Cutting Edges
3
Insert Included Angle
60 degrees
Pack quantity
10
Kyocera TCMT 18152HP KW10 Grade Uncoated Carbide, Indexable Drilling Insert
$16.14
