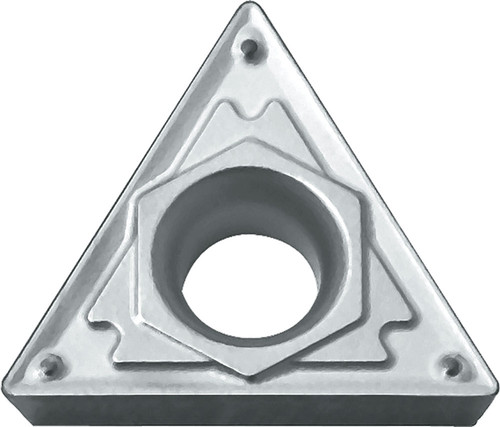

Kyocera TCMT 21505HQ TN60 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSJ01320
$15.36
Kyocera TCMT 21505HQ TN60 Grade Uncoated Cermet, 7 Degree, Triangle, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
60 degrees
Thickness
3/32 Inch
Style
TCMT
Application
External Turning
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
21505
Old Material Number
8802875
ANSI Part Number
TCMT21505HQTN60
ISO Part Number
TCMT110202HQ
Rake
Positive
Material Group / Grade
TN60
Corner Radius (Metric)
0.20
Number of Cutting Edges
3
Thickness (Metric)
2.38
Chipbreaker
HQ
Cutting Range
Finishing-Medium
Usage Classification
Continuous
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
Kyocera TCMT 21505HQ TN60 Grade Uncoated Cermet, Indexable Turning Insert
$15.36
