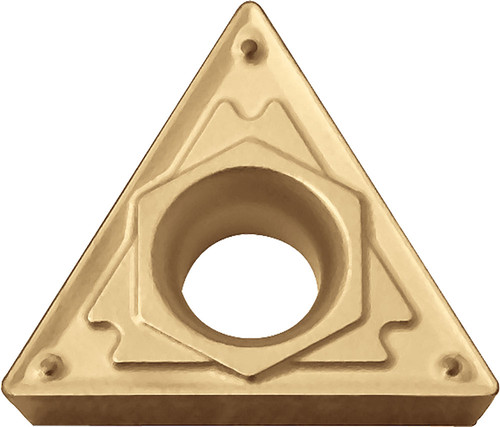

Kyocera Turning Insert TCMT2152HQ CA530: TAD05872

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAD05872
$15.36

Kyocera ISOI turning insert for steel, 1/4 in (6.35 mm) IC, triangle shape, positive rake, 3 cutting edges, finishing-medium cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TAD05872.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
3/32
Corner Radius (Fractional)
1/32
Included Angle
60
ANSI Designation
TCMT2152HQCA530
Insert Style
TCMT
Insert Thickness (Metric)
2.38
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
2152
Machining Operations
External Turning
Insert Grade
CA530
Rake
Positive
IC Size (Metric)
6.35
Corner Radius (Metric)
0.80
Number of Cutting Edges
3
Workpiece Material
Steel
ISO Designation
TCMT110208HQ
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Heavy Interruption
IC Size (Fractional)
1/4
Coating Process
CVD
Chip Breaker Type
HQ
Pack quantity
10
