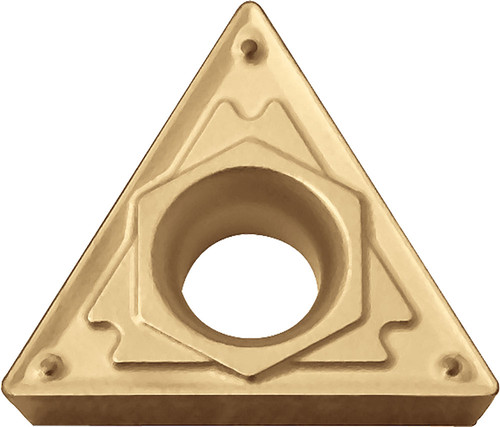

Kyocera TCMT 2152HQ PV730 Grade PVD Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLP00283
$25.34
Kyocera TCMT2152HQ PV730 Grade PVD Cermet, 7 Degree, Triangle, Positive Rake Angle, Neutral Turning Insert for Heavy Interruption and Finishing-Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/32 Inch
Included Angle
60 degrees
Thickness
3/32 Inch
Style
TCMT
Application
External Turning
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
2152
Old Material Number
8866043
ANSI Part Number
TCMT2152HQPV730
ISO Part Number
TCMT110208HQ
Rake
Positive
Material Group / Grade
PV730
Corner Radius (Metric)
0.80
Number of Cutting Edges
3
Thickness (Metric)
2.38
Chipbreaker
HQ
Cutting Range
Finishing-Medium
Usage Classification
Heavy Interruption
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
