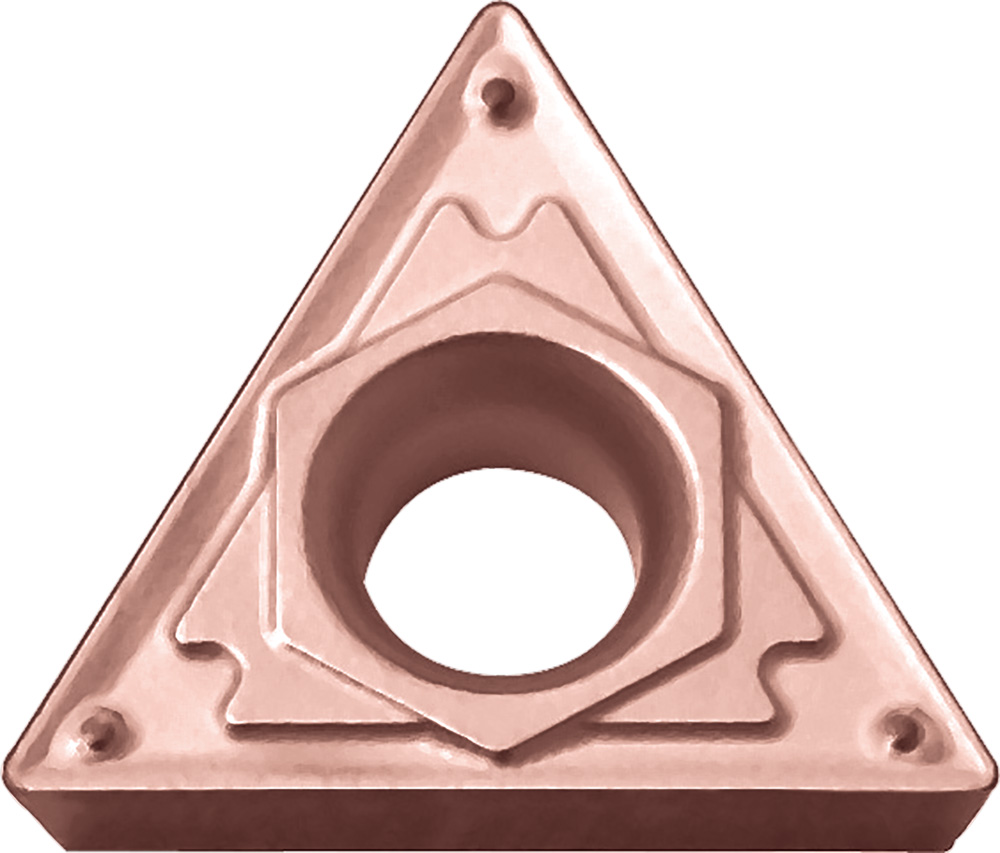

Kyocera Turning Insert TCMT3253HQ CA525: TAC05902

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAC05902
$16.38

Kyocera Turning Insert TCMT3253HQ CA525, manufacturer part number TAC05902.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 5/32 in (3.97 mm); Corner Radius: 3/64 in (1.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8841001; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Finishing-Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 3253; Hand Direction: Neutral; Insert Style: TCMT; ANSI Designation: TCMT3253HQCA525; Chip Breaker Type: HQ; ISO Designation: TCMT16T312HQ; Included Angle: 60 degrees; Machining Operations: External Turning; Insert Grade: CA525; Workpiece Material: Steel; Insert Shape: Triangle; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Metric)
3.97
Corner Radius (Fractional)
3/64
Included Angle
60
ANSI Designation
TCMT3253HQCA525
Insert Style
TCMT
Machining Operations
External Turning
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
3253
Old Material Number
8841001
Insert Grade
CA525
Workpiece Material
Steel
Rake
Positive
Insert Thickness (Fractional)
5/32
Corner Radius (Metric)
1.20
Number of Cutting Edges
3
Coating Process
CVD
IC Size (Fractional)
3/8
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
9.525
Chip Breaker Type
HQ
ISO Designation
TCMT16T312HQ
Pack quantity
10
