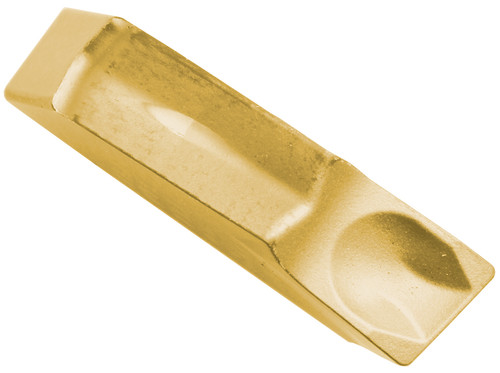

Kyocera TK L2 CR9025 Grade CVD Carbide, Indexable Cut-Off Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKW15052
$32.44
Kyocera TK L2 CR9025 Grade CVD Carbide, 2.20mm Cutting Width, Left-Hand Cut-Off Insert for Light Interruption and Finishing-Medium in (P) Steel

Specifications

Series
KTKC
Unit of Measure
Metric
Cutting Direction
Left
Material
Carbide
Primary Workpiece Material
(P) Steel
Cutting Width
2.20 mm
Application
Cut-Off
Insert Holding Method
Self-Clamp
Old Material Number
8802923
ANSI Part Number
TKL2CR9025
ISO Part Number
TKL2
Rake
Positive
Material Group / Grade
CR9025
Tool Style
TK
Cutting Width (Decimal)
0.09
Cutting Width (Metric)
2.20
Cutting Width Minimum (Decimal)
0.09
Cutting Width Minimum (Metric)
2.20
Cutting Width Maximum (Decimal)
0.09
Cutting Width Maximum (Metric)
2.20
Corner Radius (Metric)
0.20
Number of Cutting Edges
1
Insert Size
2
Corner Radius (Decimal)
0.01
Coating Process
CVD
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Light Interruption
Pack quantity
10
Kyocera TK L2 CR9025 Grade CVD Carbide, Indexable Cut-Off Insert
$32.44
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
