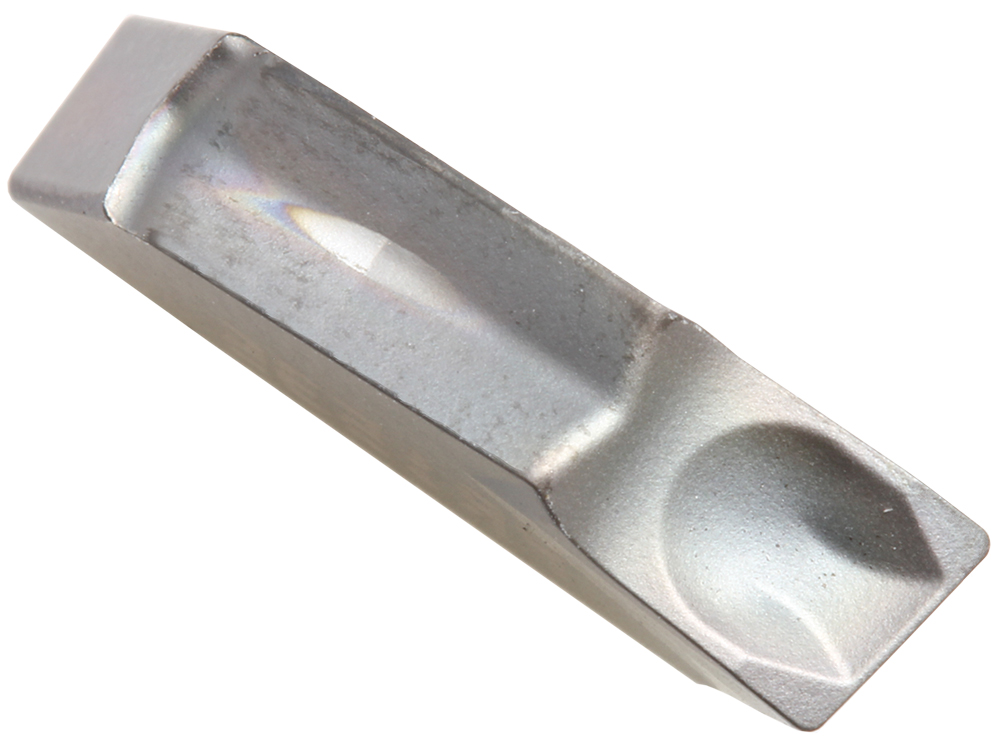

Kyocera TK R2P KW10 Grade Uncoated Carbide, Indexable Cut-Off Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE15061
$28.75
Kyocera TK R2P KW10 Grade Uncoated Carbide, 2.20mm Cutting Width, Right-Hand Cut-Off Insert for Light Interruption and Finishing-Medium in (N) Non-Ferrous Metals

Specifications

Series
KTKC
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Primary Workpiece Material
(N) Non-Ferrous Materials
Cutting Width
2.20 mm
Application
Cut-Off
Insert Holding Method
Self-Clamp
Old Material Number
8805849
ANSI Part Number
TKR2PKW10
ISO Part Number
TKR2-P
Rake
Positive
Material Group / Grade
KW10
Tool Style
TK
Cutting Width (Decimal)
0.09
Cutting Width (Metric)
2.20
Cutting Width Minimum (Decimal)
0.09
Cutting Width Minimum (Metric)
2.20
Cutting Width Maximum (Decimal)
0.09
Cutting Width Maximum (Metric)
2.20
Corner Radius (Metric)
0.20
Number of Cutting Edges
1
Insert Size
2
Corner Radius (Decimal)
0.01
Chipbreaker
P
Coating Process
Uncoated
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Light Interruption
Pack quantity
10
Kyocera TK R2P KW10 Grade Uncoated Carbide, Indexable Cut-Off Insert
$28.75
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
