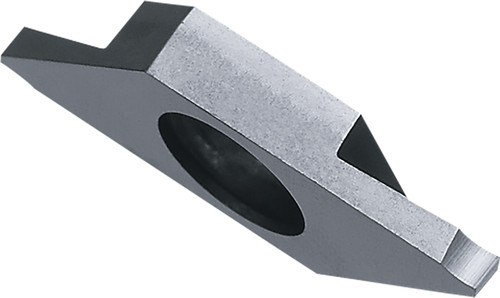

Kyocera Cut-Off Insert TKF12L050S KW10: TWE16001

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE16001
$59.86

Kyocera KTKF cut-off insert for cast iron and non-ferrous metals, parallelogram shape, positive rake, 2 cutting edges, finishing-medium cutting range, screw insert holding, left hand. Carbide, uncoated. Manufacturer part number TWE16001.

Specifications

Series
KTKF
Unit of Measure
Metric
Hand Direction
Left
Material
Carbide
Chip Breaker Type
S
ISO Designation
TKF12L050-S
Machining Operations
Cut-Off, Small Parts Machining
Insert Holding Method
Screw
Secondary Workpiece Material
High-Temp Alloy
Insert Grade
KW10
Workpiece Material
Cast Iron, Non-Ferrous
Rake
Positive
Insert Thickness (Metric)
8.70
Insert Style
TKF
Maximum Depth of Cut (Decimal)
0.0984
Maximum Depth of Cut (Metric)
2.50
Cutting Width (Decimal)
0.0197
Cutting Width (Metric)
0.50
Cutting Width Minimum (Decimal)
0.0197
Cutting Width Minimum (Metric)
0.50
Cutting Width Maximum (Decimal)
0.0197
Cutting Width Maximum (Metric)
0.50
Corner Radius (Metric)
0.03
Number of Cutting Edges
2
Insert Size
12
Corner Radius (Decimal)
0.0010
Insert Shape
Parallelogram
Insert Thickness (Decimal)
0.3430
ANSI Designation
TKF12L050SKW10
Coating/Finish
Uncoated
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Continuous to Light Interruption
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KTKF_Series.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
