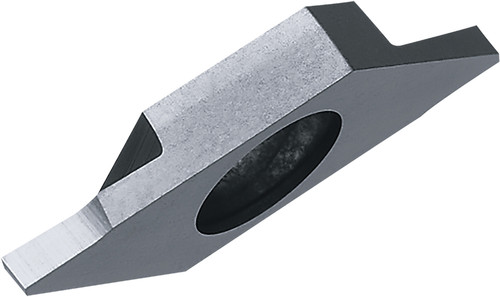

Kyocera TKF 12R070NB KW10 Grade Uncoated Carbide, Indexable Cut-Off Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE16103
$59.86
Kyocera TKF 12R070NB KW10 Grade Uncoated Carbide, 0.70mm Cutting Width, Right-Hand Cut-Off Insert for Light Interruption and Finishing-Medium in (N) Non-Ferrous Metals

Specifications

Series
KTKF
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Primary Workpiece Material
(N) Non-Ferrous Materials
Cutting Width
0.70 mm
Application
Cut-Off, Small Parts Machining
Insert Holding Method
Screw
Old Material Number
8819995
ANSI Part Number
TKF12R070NBKW10
ISO Part Number
TKF12R070-NB
Rake
Positive
Material Group / Grade
KW10
Tool Style
TKF
Max Depth of Cut (Decimal)
0.16
Max Depth of Cut (Metric)
4
Cutting Width (Decimal)
0.03
Cutting Width (Metric)
0.70
Cutting Width Minimum (Decimal)
0.03
Cutting Width Minimum (Metric)
0.70
Cutting Width Maximum (Decimal)
0.03
Cutting Width Maximum (Metric)
0.70
Number of Cutting Edges
2
Insert Size
12
Thickness (Decimal)
0.34
Thickness (Metric)
8.70
Chipbreaker
NB
Coating Process
Uncoated
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Light Interruption
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KTKF_Series.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
