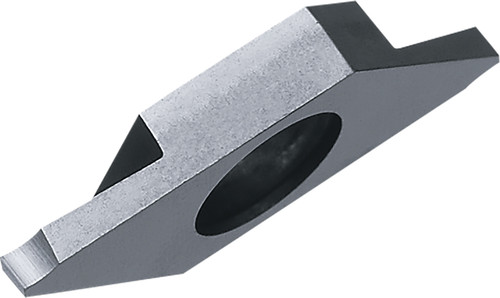

Kyocera TKF 12R100S PR1725 Grade PVD Carbide, Indexable Cut-Off Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM40109
$72.51
Kyocera TKF 12R100S PR1725 Grade PVD Carbide, 0.0394" Cutting Width, Right-Hand Cut-Off Insert for Light Interruption and Finishing-Medium in (P) Steel and (M) Stainless Steel

Specifications

Series
KTKF
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Primary Workpiece Material
(P) Steel
Cutting Width
1 mm
Application
Cut-Off, Small Parts Machining
Insert Holding Method
Screw
Old Material Number
8865413
ANSI Part Number
TKF12R100SPR1725
ISO Part Number
TKF12R100-S
Rake
Positive
Material Group / Grade
PR1725
Tool Style
TKF
Max Depth of Cut (Decimal)
0.24
Max Depth of Cut (Metric)
6
Cutting Width (Decimal)
0.04
Cutting Width (Metric)
1
Cutting Width Minimum (Decimal)
0.04
Cutting Width Minimum (Metric)
1
Cutting Width Maximum (Decimal)
0.04
Cutting Width Maximum (Metric)
1
Corner Radius (Metric)
0.03
Number of Cutting Edges
2
Insert Size
12
Corner Radius (Decimal)
0.001
Thickness (Decimal)
0.34
Thickness (Metric)
8.70
Chipbreaker
S
Coating Process
PVD
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Light Interruption
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KTKF_Series.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR1725_PR1705.pdf
Kyocera TKF 12R100S PR1725 Grade PVD Carbide, Indexable Cut-Off Insert
$72.51
