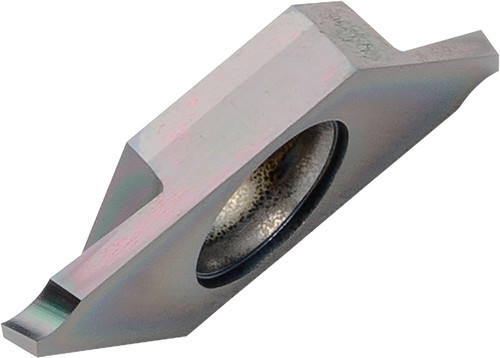

Kyocera TKF 12R100S16DR PDL025 Grade DLC Carbide, Indexable Cut-Off Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLE16058
$77.81
Kyocera TKF 12R100S16DR PDL025 Grade DLC Carbide, 1.00mm Cutting Width, Right-Hand Cut-Off Insert for Light Interruption and Finishing-Medium in (N) Non-Ferrous Metals

Specifications

Series
KTKF
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Primary Workpiece Material
(N) Non-Ferrous Materials
Cutting Width
1 mm
Application
Cut-Off, Small Parts Machining
Insert Holding Method
Screw
Old Material Number
8845315
ANSI Part Number
TKF12R100S16DRPDL025
ISO Part Number
TKF12R100-S-16DR
Rake
Positive
Material Group / Grade
PDL025
Tool Style
TKF
Max Depth of Cut (Decimal)
0.24
Max Depth of Cut (Metric)
6
Cutting Width (Decimal)
0.04
Cutting Width (Metric)
1
Cutting Width Minimum (Decimal)
0.04
Cutting Width Minimum (Metric)
1
Cutting Width Maximum (Decimal)
0.04
Cutting Width Maximum (Metric)
1
Corner Radius (Metric)
0.03
Number of Cutting Edges
2
Insert Size
12
Corner Radius (Decimal)
0.001
Thickness (Decimal)
0.34
Thickness (Metric)
8.70
Chipbreaker
S
Coating Process
DLC
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Light Interruption
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KTKF_Series.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PDL010_PDL025_Inserts_for_Aluminum.pdf
Kyocera TKF 12R100S16DR PDL025 Grade DLC Carbide, Indexable Cut-Off Insert
$77.81
