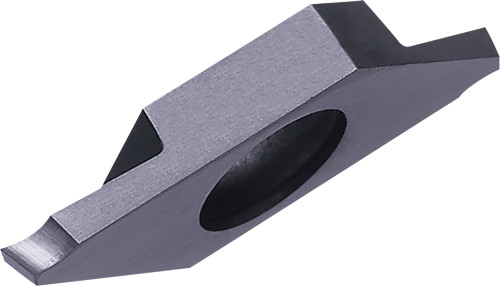

Kyocera TKF 12R100T16DR PR1225 Grade PVD Carbide, Indexable Cut-Off Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE16070
$72.51
Kyocera TKF 12R100T16DR PR1225 Grade PVD Carbide, 1.00mm Cutting Width, Right-Hand Cut-Off Insert for Light Interruption and Medium-Roughing in (P) Steel and (M) Stainless Steel

Specifications

Series
KTKF
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Primary Workpiece Material
(P) Steel
Cutting Width
1 mm
Application
Cut-Off, Small Parts Machining
Insert Holding Method
Screw
Old Material Number
8835391
ANSI Part Number
TKF12R100T16DRPR1225
ISO Part Number
TKF12R100-T-16DR
Rake
Positive
Material Group / Grade
PR1225
Tool Style
TKF
Max Depth of Cut (Decimal)
0.24
Max Depth of Cut (Metric)
6
Cutting Width (Decimal)
0.04
Cutting Width (Metric)
1
Cutting Width Minimum (Decimal)
0.04
Cutting Width Minimum (Metric)
1
Cutting Width Maximum (Decimal)
0.04
Cutting Width Maximum (Metric)
1
Corner Radius (Metric)
0.08
Number of Cutting Edges
2
Insert Size
12
Corner Radius (Decimal)
0.003
Thickness (Decimal)
0.34
Thickness (Metric)
8.70
Chipbreaker
T
Coating Process
PVD
Cutting Range
Medium-Roughing
Full Radius
No
Usage Classification
Light Interruption
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KTKF_Series.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
Kyocera TKF 12R100T16DR PR1225 Grade PVD Carbide, Indexable Cut-Off Insert
