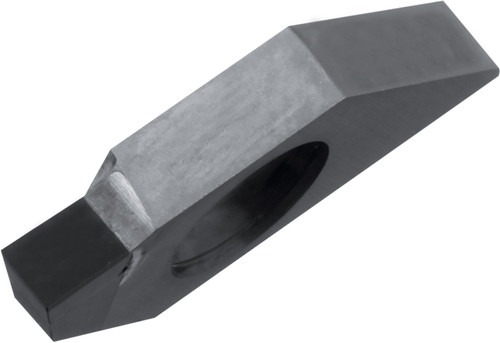

Kyocera Grooving Insert TKF12R150NB KPD001: TBR16109

Kyocera Grooving Insert TKF12R150NB KPD001, manufacturer part number TBR16109.

Specifications: Insert Thickness: 8.70 mm (0.3430 in); Corner Radius: 0.10 mm (0.0040 in); Cutting Width: 1.50 mm (0.0591 in); Insert Holding Method: Screw; Old Material Number: 8829651; Rake: Positive; Number of Cutting Edges: 1; Cutting Range: Finishing; Full Radius: No; Usage Classification: Continuous; Cutting Width Minimum: 1.50 mm (0.0591 in); Cutting Width Maximum: 1.50 mm (0.0591 in); Maximum Depth of Cut: 3.50 mm (0.1378 in); Insert Shape: Parallelogram; Insert Size: 12; Corner Radius Tolerance: +0.00/-0.05 mm (+0.0000/-0.0020 in); Insert Style: TKF; Hand Direction: Right; ANSI Designation: TKF12R150NBKPD001; Chip Breaker Type: NB; ISO Designation: TKF12R150-NB; Machining Operations: External Grooving, Traversing; Insert Grade: KPD001; Workpiece Material: Non-Ferrous, High-Temp Alloy.

Material: PCD. Coating/Finish: Uncoated. Series: KTKF. Unit of measure: Metric.
