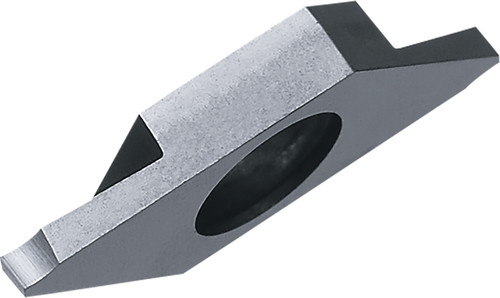

Kyocera Cut-Off Insert TKF12R200S KW10: TWE16012

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE16012
$59.86

Kyocera Cut-Off Insert TKF12R200S KW10, manufacturer part number TWE16012.

Specifications: Insert Thickness: 8.70 mm (0.3430 in); Corner Radius: 0.03 mm (0.0010 in); Cutting Width: 2.00 mm (0.0787 in); Insert Holding Method: Screw; Old Material Number: 8821213; Rake: Positive; Cutting Width Minimum: 2.00 mm (0.0787 in); Cutting Width Maximum: 2.00 mm (0.0787 in); Number of Cutting Edges: 2; Insert Size: 12; Cutting Range: Finishing-Medium; Full Radius: No; Usage Classification: Continuous to Light Interruption; Maximum Depth of Cut: 6.00 mm (0.2362 in); Insert Shape: Parallelogram; Hand Direction: Right; Insert Style: TKF; ANSI Designation: TKF12R200SKW10; Chip Breaker Type: S; ISO Designation: TKF12R200-S; Machining Operations: Cut-Off, Small Parts Machining; Insert Grade: KW10; Workpiece Material: Cast Iron, Non-Ferrous, High-Temp Alloy.

Material: Carbide. Coating/Finish: Uncoated. Series: KTKF. Unit of measure: Metric.

Specifications

Series
KTKF
Unit of Measure
Metric
Hand Direction
Right
Material
Carbide
Chip Breaker Type
S
ISO Designation
TKF12R200-S
Machining Operations
Cut-Off, Small Parts Machining
Insert Holding Method
Screw
Old Material Number
8821213
Insert Grade
KW10
Workpiece Material
Cast Iron, Non-Ferrous, High-Temp Alloy
Rake
Positive
Insert Thickness (Metric)
8.70
Insert Style
TKF
Maximum Depth of Cut (Decimal)
0.2362
Maximum Depth of Cut (Metric)
6.00
Cutting Width (Decimal)
0.0787
Cutting Width (Metric)
2.00
Cutting Width Minimum (Decimal)
0.0787
Cutting Width Minimum (Metric)
2.00
Cutting Width Maximum (Decimal)
0.0787
Cutting Width Maximum (Metric)
2.00
Corner Radius (Metric)
0.03
Number of Cutting Edges
2
Insert Size
12
Corner Radius (Decimal)
0.0010
Insert Shape
Parallelogram
Insert Thickness (Decimal)
0.3430
ANSI Designation
TKF12R200SKW10
Coating/Finish
Uncoated
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Continuous to Light Interruption
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KTKF_Series.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
